When You Need a Level 2 Electrician in Sydney
You’ve Received a Defect Notice
Ausgrid and Endeavour Energy issue defect notices when your electrical supply infrastructure fails to meet safety compliance standards. These notices specify timeframes for repairs. A level 2 electrician must complete the required work on consumer mains, weatherheads, or service lines before the deadline passes.
Your Property Requires More Power
Older homes often have single phase 63 amp connections that can’t support modern electrical loads. Adding air conditioning, dedicated EV charging infrastructure, or heavy workshop equipment may require upgrading to a larger single phase supply or converting to three phase power. Only accredited level 2 electricians can perform these main power supply upgrades.
You’re Building a New Property
New residential and commercial construction requires fresh connections to the electricity network. This involves installing underground services or overhead service mains from the point of supply to your switchboard. Your builder supply needs a certified level 2 electrician to establish temporary power during construction and permanent connections upon completion.
Your Power Pole Shows Damage
Private power poles on your property remain your responsibility to maintain. Rotting timber, leaning poles, or damaged crossarms create serious safety risks. Storm damage often requires urgent pole replacement or tiger tail installation to protect low voltage lines from contact with vegetation.
Smart Meter Installation Required
Network providers are transitioning properties to smart meters across Sydney. While some meter exchanges fall under distributor programs, many situations require a level 2 electrician to upgrade your metering panel to accommodate new digital smart meters, relocate equipment, or modify consumer mains.
What a Level 2 Electrician Does (ASP Scope in Sydney)
Level 2 electrical work sits at the connection between your property and the distribution network. It’s a regulated scope performed under the Accredited Service Provider (ASP) Scheme, typically triggered by Ausgrid or Endeavour Energy defect notices, service mains deterioration, or supply upgrades that require authorised connection works. Calibre Connect completes ASP Level 2 works across Sydney as authorised, with all works carried out in accordance with AS/NZS 3000:2018 and the NSW Service and Installation Rules (SIR).
ASP Level 2 Classes Explained (2A, 2B, 2C, 2D)
Our Level 2 authorisations cover the core classes relevant to connection and service works:
(All work is performed within ASP scheme guidelines and in accordance with distributor requirements for the relevant network area.)
Connection Boundary Basics: POA vs POS (What’s Assessed)
For most Sydney properties, the practical starting point is understanding the connection points that commonly appear on defect notices:
If you’re unsure whether an issue requires standard electrical services or a Level 2 connection upgrade, the simplest rule is this: if it relates to the service mains, POA, private pole, or network connection compliance, it typically falls within ASP Level 2 scope.

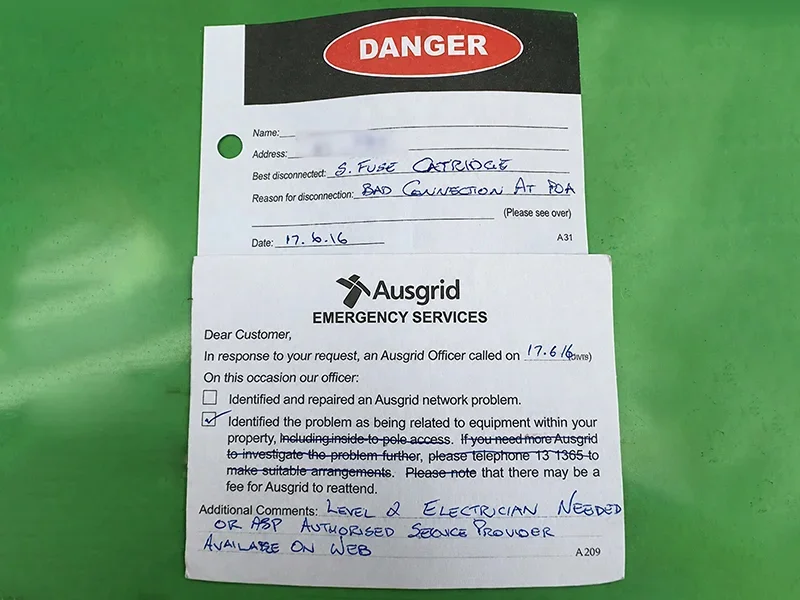

Ausgrid & Endeavour Energy Defect Notice Rectification
Defect notices are issued when connection assets or associated installation items don’t meet the required safety and service rules for the network area. In Sydney, the most common triggers relate to point of attachment (POA) hardware, overhead/underground service mains, clearances, and connection protection/earthing items that must be brought back into compliance. Calibre Connect rectifies defect notice items as ASP Level 2 works, aligned to the relevant Ausgrid or Endeavour Energy requirements, and completed in accordance with AS/NZS 3000:2018 and the NSW Service and Installation Rules (SIR).
If you’ve been issued a notice with a timeframe, treat it as urgent. Delays can increase the risk of supply interruption until the defect item is rectified and closed out.
What Happens Next (Rectification Pathway)
1. Confirm the distributor area
(Ausgrid or Endeavour Energy) and the defect item(s) listed on the notice.
2. Inspect the connection assets
relevant to the notice, typically POA, service mains (overhead/underground), and associated connection components.
3. Define the rectification scope
and the relevant ASP Level 2 class (2A/2B/2C/2D) based on the required works.
4. Complete rectification works
to the applicable standards and rules (AS/NZS 3000:2018 and NSW SIR), and within ASP scheme guidelines.
5. Test and verify
the completed works, and provide required compliance documentation (CCEW where applicable) for the rectification performed.
6. Support close-out
of the rectification pathway by ensuring the installation meets the defect notice requirements for the relevant network area (without making promises about distributor decisions or timings).
Defect Notice Triage (Common Items We Rectify)
|
Defect notice item (typical) |
What it usually indicates |
Typical rectification approach |
ASP class |
Access required |
|---|---|---|---|---|
|
POA bracket / fixings non-compliant |
Deterioration, unsafe mounting, inadequate clearances |
Upgrade/replace POA hardware and correct clearances |
2C |
External wall access, ladder space |
|
Overhead service mains damaged / degraded |
Weathered insulation, mechanical damage, clearance issues |
Replace overhead service mains and associated connection hardware |
2C |
POA access, safe work zone |
|
Underground service mains fault / deterioration |
Aged mains, damaged conduit, water ingress |
Replace/upgrade underground mains and conduit section as required |
2B |
Access along service route, reinstatement planning |
|
Service protection / connection components non-compliant |
Incorrect/aged service protection arrangement |
Rectify service protection to meet connection requirements |
2A / 2D (site dependent) |
Meter/switchboard area access |
|
Earthing / MEN issue noted |
Earthing arrangement not meeting requirements |
Rectify earthing path as applicable to the notice item |
2A / 2B (site dependent) |
Switchboard/meter board access |
Note: the exact scope depends on the defect notice item(s), site configuration, and distributor requirements for that network area.
Ausgrid vs Endeavour: What Can Differ
While the defect categories are similar, terminology, evidence requirements, and close-out steps can vary between distributors. We confirm the network area early, align the rectification scope to the relevant requirements, and provide documentation appropriate to the work performed (CCEW where applicable).
Access Prep Checklist (Helps Avoid Delays)
Before the booking, it helps to have:
Request a quote from accredited Level 2 electricians

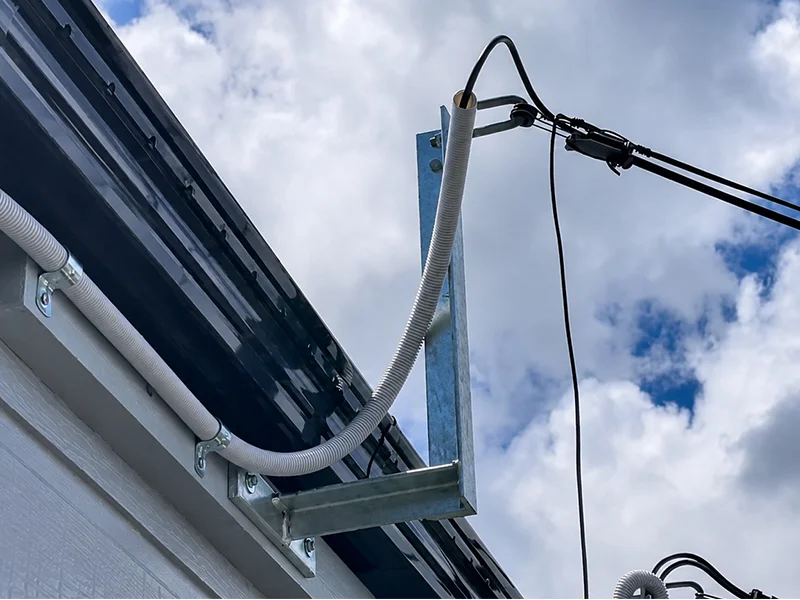

Point of Attachment (POA) Repairs for Older Sydney Homes & Strata
The point of attachment (POA) is the physical point where an overhead service line attaches to the building. In Sydney, POA defects are a common trigger for Ausgrid and Endeavour notices, particularly on older housing stock and strata buildings where brackets, fixings, or clearances no longer meet current requirements. Calibre Connect completes POA rectification as ASP Level 2 overhead service work (Class 2C), with scope confirmed against the relevant distributor requirements and the NSW Service and Installation Rules (SIR).
Federation & Art Deco Stock (Inner West / North Shore)
Federation homes, Art Deco blocks and older terraces can present a predictable mix of issues at the POA:
Our approach is straightforward: confirm the defect item, assess the attachment condition and service route, then upgrade the POA hardware and associated overhead connection components to achieve a compliant, safe outcome under the ASP framework.
Coastal Exposure (Eastern Suburbs / Northern Beaches)
In coastal suburbs, salt air corrosion accelerates degradation of external fixings and brackets. Where suitable, we specify materials and fixings appropriate to the environment (including corrosion-resistant hardware) and confirm clearances and attachment integrity as part of the rectification scope, particularly in exposed locations.

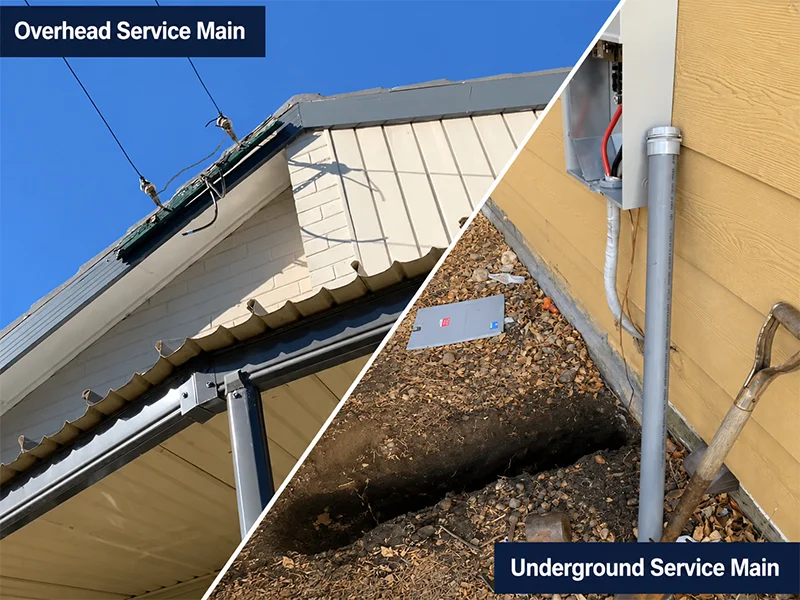

Overhead vs Underground Service Mains (ASP Level 2 Works)
Service mains are the conductors that connect a property to the distribution network. In Sydney, defects and upgrade works typically fall into one of two categories: overhead service work (Class 2C) or underground service work (Class 2B). Calibre Connect assesses the existing service arrangement, confirms the relevant network area requirements (Ausgrid or Endeavour Energy), and completes rectification within the ASP Level 2 framework and in accordance with AS/NZS 3000:2018 and the NSW Service and Installation Rules (SIR).

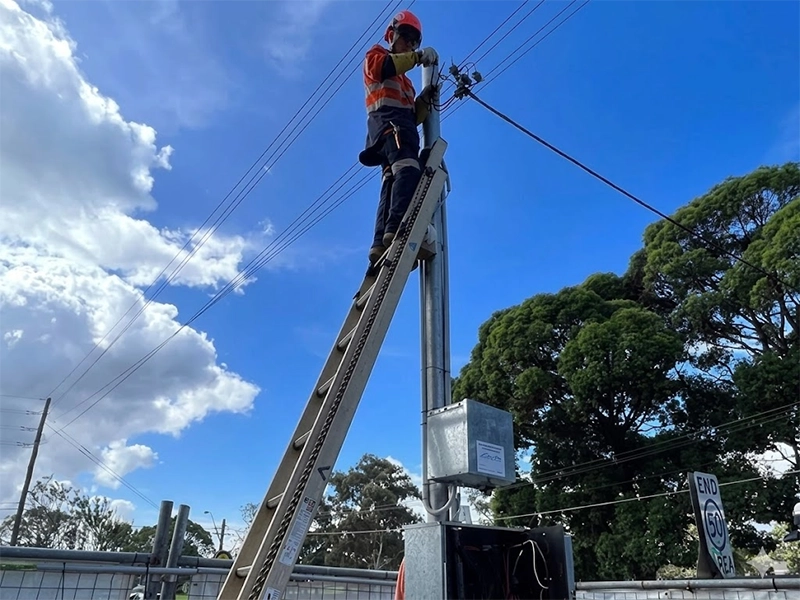

Overhead Service Line Replacement (Class 2C)
Overhead defects commonly relate to degraded insulation, mechanical damage, aged service routes, or non-compliant clearances. Where overhead service mains require replacement, we confirm the POA condition, assess the service route and access, then replace the affected overhead components to restore compliance and safe connection outcomes.
Where appropriate to the scope, we also account for practical site constraints, such as access for ladder placement and safe work zones, so works can be completed efficiently without repeated visits.
Underground Service Mains Upgrades (Class 2B)
Underground service defects often involve deteriorated service mains, damaged or non-compliant conduit runs, or service routes that no longer suit the site configuration. For underground upgrades, we confirm the service path, access requirements, and any reinstatement expectations (particularly relevant for strata and commercial sites), then complete the required underground service works under Class 2B.
For many properties, underground service rectification intersects with the meter board/switchboard area where service protection and connection components are located. If the existing installation is outdated or non-compliant, it may be appropriate to rectify obsolete switchboard components as part of an overall compliance outcome.

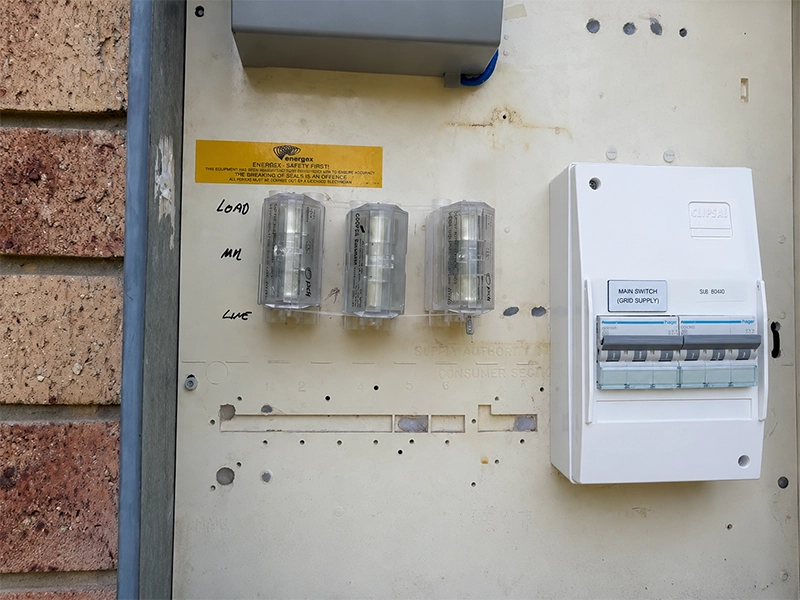

3-Phase Power Upgrades & High Capacity Supply
Where loads have increased, renovations, new builds, strata services, commercial tenancies, larger air conditioning systems, or site plant, the existing supply may no longer suit the site’s maximum demand. In Sydney, capacity upgrades are typically delivered as ASP Level 2 connection works, aligned to the relevant distributor requirements (Ausgrid or Endeavour Energy) and completed in accordance with AS/NZS 3000:2018 and the NSW Service and Installation Rules (SIR).
How Supply Size Is Determined (Maximum Demand)
Maximum demand is a calculated estimate of the greatest load a site is expected to draw under normal operating conditions. It helps determine whether a site can remain on single phase (230V) supply or should be upgraded to 3 phase (400V), and whether changes are required to the service arrangement and protection to support a compliant connection outcome.
Upgrade Pathway (Typical 3-Phase / High Capacity Process)
Confirm the existing supply
(single phase vs 3-phase) and the site’s current connection arrangement.
Assess current and planned loads
(for example: HVAC, lifts, commercial equipment, EV charging infrastructure, or upgraded amenities).
Complete a maximum demand assessment
to determine the required supply capacity and service arrangement.
Define the service upgrade scope
including any required changes to service mains and service protection components within the relevant ASP Level 2 authorisation class(es).
Schedule and deliver the works
with clear site coordination (strata/builders/commercial), then test/verify and provide compliance documentation where applicable.
Speak with an authorised Level 2 electrician today
Private Power Pole Installations & Replacements (Sydney)
Some properties require a private power pole to achieve compliant clearances, correct the service route, or support a safe overhead connection arrangement, particularly where the existing attachment point or service path is no longer suitable. Calibre Connect completes private pole works as part of ASP Level 2 overhead service outcomes, aligned to the relevant network area requirements and the NSW Service and Installation Rules (SIR).
When a Private Pole Is Required
A private pole may be required where:
We assess the site conditions, confirm the required service arrangement for the network area, and deliver the works with clear access planning and compliance-focused scope control.
Timber vs Galvanised (Site Conditions)
Material selection is driven by the installation environment and service arrangement. Treated timber poles remain common for many residential contexts, while galvanised steel can be appropriate for specific site constraints, exposure conditions, and durability requirements. The correct choice is assessed against the site’s service routing, clearances, and practical access for installation and future maintenance.

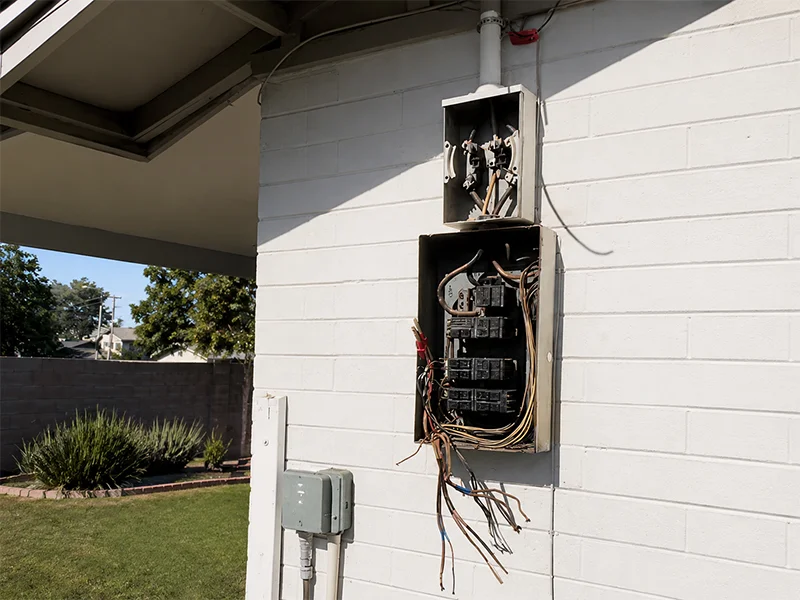

Legacy Electrical Risks in Older Sydney Buildings (Handled Safely)
Sydney’s older housing and strata stock can include legacy equipment at the connection and meter-board interface that complicates defect rectification and upgrade works. Where older components are present, Calibre Connect takes a controlled, compliance-first approach: identify the risk, plan access and isolation appropriately, and progress works in line with applicable requirements and the NSW Service and Installation Rules (SIR).
Asbestos Meter Boards in Strata (Zelemite)
In some older strata buildings and residential premises, asbestos-containing meter boards (including legacy Zelemite-style boards) may be present. Where suspected or confirmed, we do not disturb materials unnecessarily. We manage the project pathway by identifying the constraint early, planning the rectification scope accordingly, and coordinating compliant handling/remediation where required before network-related upgrades proceed. This helps strata managers and owners avoid unsafe works, delays, and rework.
Obsolete Fuse Gear and Legacy Components
Older installations may also include ceramic rewireable fuses and outdated circuit protection that no longer suit modern load profiles or compliance expectations at the connection interface. Where these issues intersect with service works or defect items, we define the scope clearly and recommend the appropriate upgrade pathway so the final outcome is safe, compliant, and supportable.
Why Choose Calibre Connect for Level 2 Electrical Work in Sydney
Level 2 electrical work sits at the connection point between the property and the distribution network, so the scope needs to be handled carefully, authorised correctly, and completed to the applicable service and installation rules. Calibre Connect provides ASP Level 2 contestable service works across Sydney for defect notices, point of attachment repairs, service mains upgrades, and related connection works in Ausgrid and Endeavour Energy areas.
ASP Level 2 Authorised for Contestable Service Work
Calibre Connect is authorised to carry out ASP Level 2 contestable service works across Sydney, including disconnect and reconnect, underground service work, overhead service work, and energising service equipment where the approved scope requires it.
Experience with Defect Notices and Connection Compliance
Defect notices often involve urgent compliance issues affecting service mains, point of attachment hardware, clearances, earthing, or related connection assets. We assess the notice, inspect the affected connection point, and define a rectification scope aligned to the relevant network area and site conditions.
Works Completed to NSW Service and Installation Rules
Level 2 work must be completed in accordance with the NSW Service and Installation Rules, applicable distributor requirements, and AS/NZS 3000:2018 where relevant to the scope. Our approach is compliance-first, with the work carried out methodically and documented properly on completion.
Ausgrid and Endeavour Energy Area Coverage
Sydney connection work is not handled under one single network area. We carry out Level 2 works across both Ausgrid and Endeavour Energy areas, with the scope assessed against the relevant distributor requirements for the site.
Clear Scoping for Overhead, Underground and Supply Upgrades
Level 2 jobs vary significantly depending on whether the issue involves an overhead service, underground service mains, private power pole, point of attachment, or supply capacity upgrade. We identify the actual connection issue first, then recommend a practical pathway based on the condition of the existing assets and the required authorisation class.
Suitable for Homes, Strata and Commercial Sites
We complete Level 2 electrical works across residential homes, strata buildings, and commercial sites throughout Sydney. That includes older detached homes with ageing connection assets, apartment buildings with shared infrastructure, and commercial premises requiring controlled supply upgrades or defect rectification.
What Our Clients Say About Calibre Connect Level 2 Electrical Work
Service Areas: Level 2 Electrical Work Matched to Sydney Connection Types
The building type, service arrangement, and network area all change what Level 2 electrical work looks like in practice. A Federation home with a deteriorated point of attachment needs a different approach to a strata building with shared service infrastructure, or a commercial site requiring a higher-capacity supply upgrade.
Here’s how we tailor Level 2 electrical works across Greater Sydney:
Inner West (Older Homes, Overhead Services and POA Defects)
In suburbs like Leichhardt, Annandale, and Drummoyne, we commonly work on older homes with ageing overhead service arrangements, deteriorated attachment hardware, and legacy connection assets.
Typical challenge: corroded or fatigued point of attachment hardware, older service routes, and connection assets that no longer meet current clearance or support requirements.
Our approach: inspect the service entry carefully, confirm the relevant defect or compliance issue, and complete overhead rectification works with the correct hardware, safe clearances, and compliant connection outcomes.
Eastern Suburbs (Coastal Exposure and External Connection Asset Degradation)
For homes and buildings in Bondi, Coogee, Maroubra, and Rose Bay, salt air and weather exposure can accelerate deterioration of external service components.
Typical challenge: corrosion affecting point of attachment brackets, overhead connection hardware, and exposed service components in coastal conditions.
Our approach: assess the condition of the external connection assets, define the required rectification scope, and install suitable replacement components for a compliant and durable outcome in exposed environments.
North Shore (Strata Buildings and Shared Service Infrastructure)
In areas like North Sydney, Chatswood, and Lane Cove, Level 2 works often involve strata buildings, shared meter areas, and more complex access coordination.
Typical challenge: shared service arrangements, restricted access windows, common property coordination, and ageing connection infrastructure in apartment buildings.
Our approach: plan access early, inspect the relevant connection assets methodically, and deliver defect rectification or service works with clear coordination around strata requirements and shared building infrastructure.
Hills District (Supply Upgrades and 3-Phase Demand)
For larger homes, renovations, and expanding sites in Castle Hill, Kellyville, and Baulkham Hills, the issue is often less about deterioration and more about whether the existing supply still suits the property’s electrical demand.
Typical challenge: the current connection arrangement may no longer support upgraded loads such as larger air conditioning systems, site plant, workshop loads, or broader electrical upgrades.
Our approach: assess the existing service arrangement, review maximum demand requirements, and define the Level 2 scope needed for a compliant single-phase or 3-phase supply upgrade.
Northern Beaches (Private Poles, Overhead Routes and Coastal Wear)
In suburbs like Manly, Dee Why, and Mona Vale, we often see properties with more exposed overhead routes, private poles, and service assets affected by environmental wear.
Typical challenge: deteriorated private poles, exposed overhead routes, and coastal conditions affecting long-term service asset condition.
Our approach: inspect the route, pole condition, attachment points, and service path, then complete the required private pole, overhead service, or point of attachment works with practical access planning and compliance-focused scoping.
Sydney CBD and Inner City (Commercial Sites, Restricted Access and Service Coordination)
In the CBD and surrounding inner-city areas, Level 2 work often needs to be carried out around tight site access, building controls, and commercial operating constraints.
Typical challenge: restricted work windows, limited access around meter and service areas, and the need to coordinate connection works without unnecessary disruption.
Our approach: define the service scope clearly, coordinate the access pathway in advance, and complete the authorised works in an organised sequence suited to commercial or mixed-use buildings.
FAQs Level 2 (ASP) Electrical Work in Sydney
Book a Level 2 Electrician (Sydney)
If you need defect notice rectification, POA repairs, service mains upgrades (overhead or underground), private power pole works, or a supply capacity upgrade, contact Calibre Connect to arrange an inspection and define the correct ASP Level 2 scope for your site.
