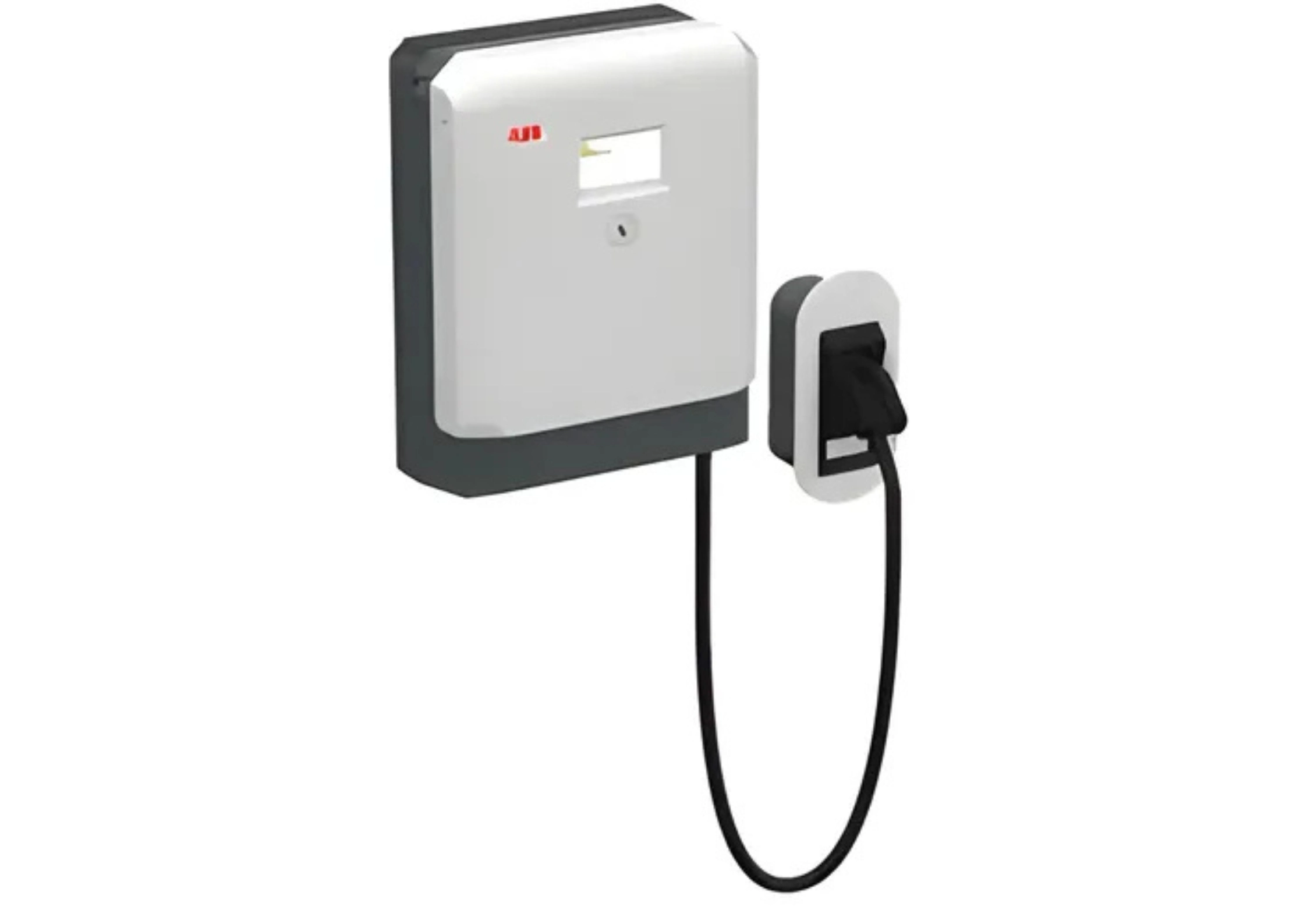

ABB Terra DC Wallbox | 24kW

With its ultra-compact size and high-voltage charging capabilities, Terra DC wallbox is a future-proof investment that can be used for a wide range of use cases. It is also secure and dependable for residential use.

ABB Terra DC Wallbox 24kW​-main-photo

Main Features

Load management

  • Smart charging via OCPP
  • Set up for external energy meter integration for dynamic load management
  • Ready for integration with advanced smart building energy system

Built-in safety

  • Overcurrent
  • Overvoltage and undervoltage
  • Ground fault
  • Surge protection
  • PE (protective earth) continuity monitoring
  • Leakage current monitor protection

Connector

  • CE variants:
    – Single output: CCS2
    – Dual output: CCS2+ CHAdeMO
  •   UL variants:
    – 1-Phase input,single output: CCS1
    – 1-Phase input,dual output: CCS1+ CHAdeMO
    – 3-Phase input,single output: CCS1
    – 3-Phase input,dual output: CCS1+ CHAdeMO

Intelligent design

  • CE variants:
    – 0- 22.5 kW, 24 kW (peak) / 60A
    – Three phase up to 22 kW / 32 A
  •   UL variants:
    – Single phase: 19.5 kW @ 208 V / 60A ; 22.5 kW @ 240 V / 60A
    –  Three phase: 0- 22.5 kW, 24 kW (peak) / 60A
  • Charging Voltage: CCS: 150- 920 V DC
  • Outdoor and indoor installation NEMA 3 &IP 54

Connectivity

  • GSM/ 3G/ 4G
  • Ethernet
  • RFID
