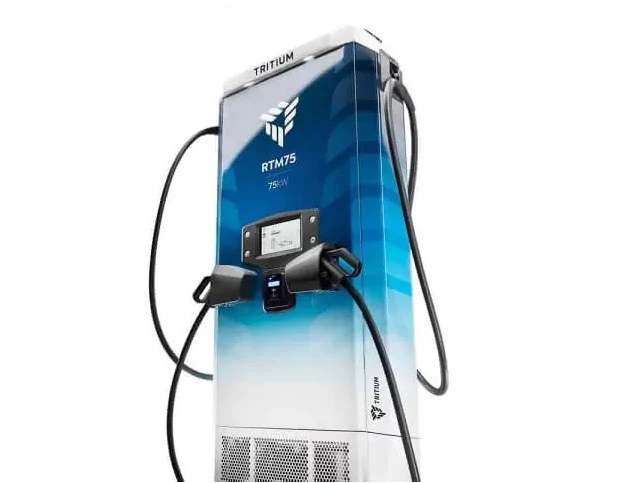

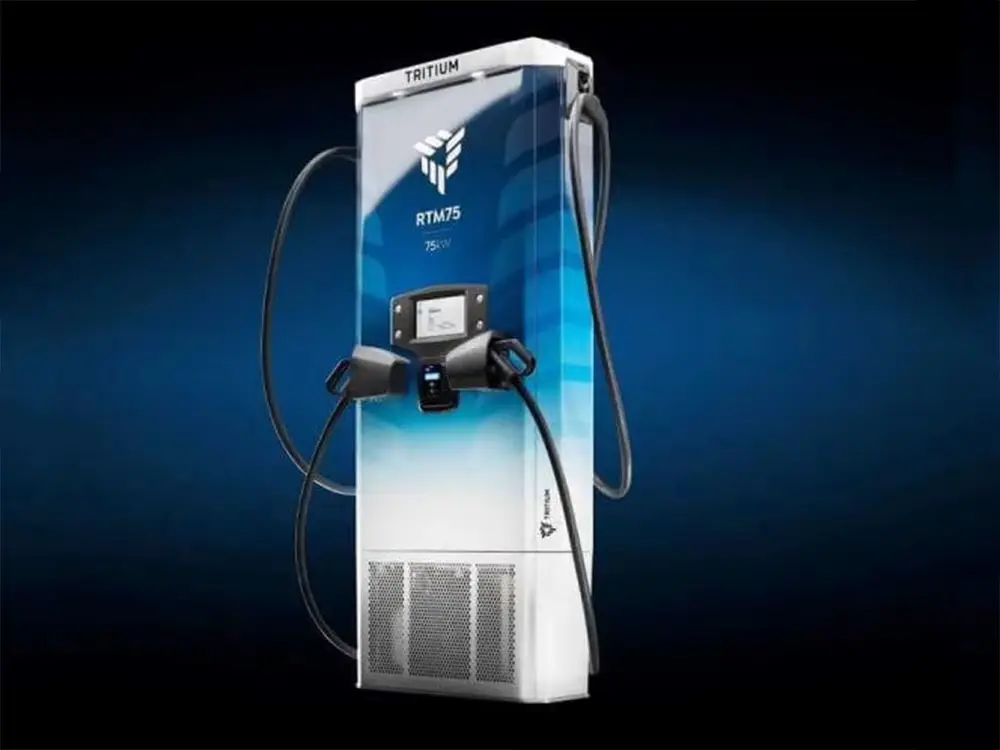

Tritium RTM DC Charger | 75 kW
The Tritium RTM is the world’s best-selling DC Fast Charger, fueling the electric vehicle revolution. Tritium’s DNA of liquid cooling, tiny footprint, and industry-leading IP65 rated enclosure are combined with a modular power electronics design in this smart, scalable, and durable platform.
The Tritium RTM DC Charger offers an impressive 75 kW output, providing rapid charging for electric vehicles in high-demand locations. This commercial EV charger is engineered for efficiency and reliability. The charger supports a wide range of EVs, ensuring quick turnaround times for users. Upgrade your charging infrastructure with our expert EVSE Charger Installation service for a seamless and effective setup.
Ensure reliable and efficient charging with EV Charger Installation services by Calibre Connect. Contact us for your home and commercial EV charging installation and let our experts handle it with precision and care.
Main Features
- Connectors CHadeMO and CCS2 or 2 x CCS2
- Power- 75 kW

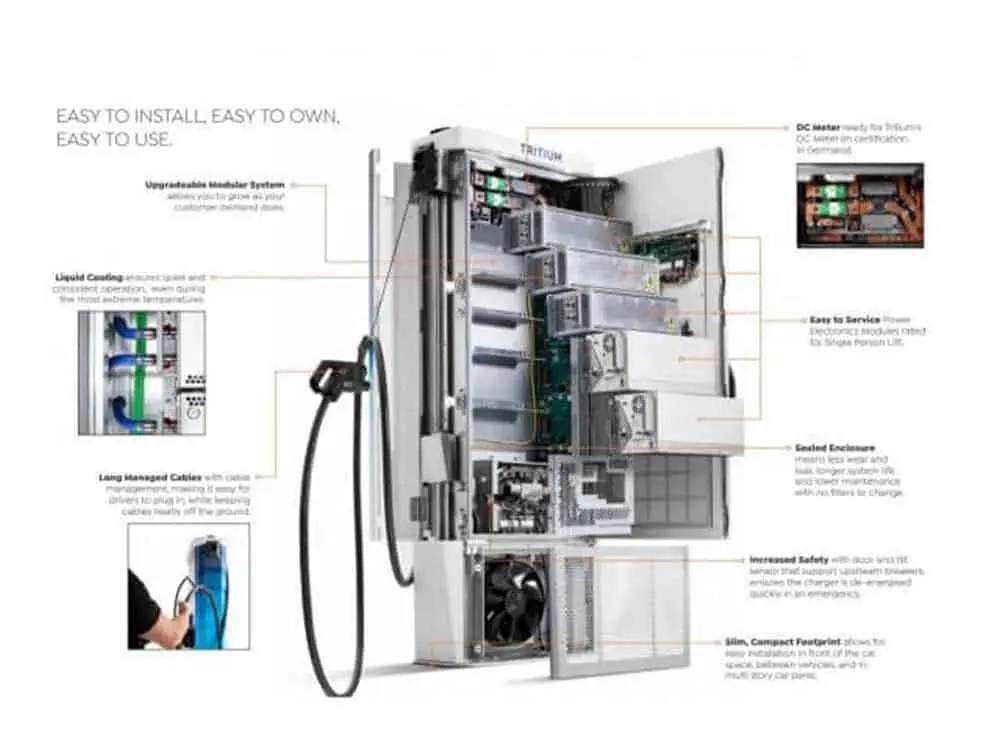

- Liquid Cooled to provide a smaller footprint.
- Supply input: 380 – 480 V AC
- Supply frequency: 50-60 Hz
- IP65
- IK10
- Efficiency >95%
- Power Factor: 0.99
- 266 Kg
- -35 ̊C to 40 ̊C sustained operations at full power Rated for operation to 50 ̊C (derating applies)
- Network Connection: 3G and 4G
- RFID: MI-FARE ISO/IEC14443A/B, ISO/IEC15693, ISO/IEC18000-3, FeliCa, NFC
- OCPP 1.6J, OCPP 2.0
- Dimensions: 1998 x 850 x 300 mm
- Certifications: CE
- Australian Made
Optional Upgrades
- 6m Cables with management

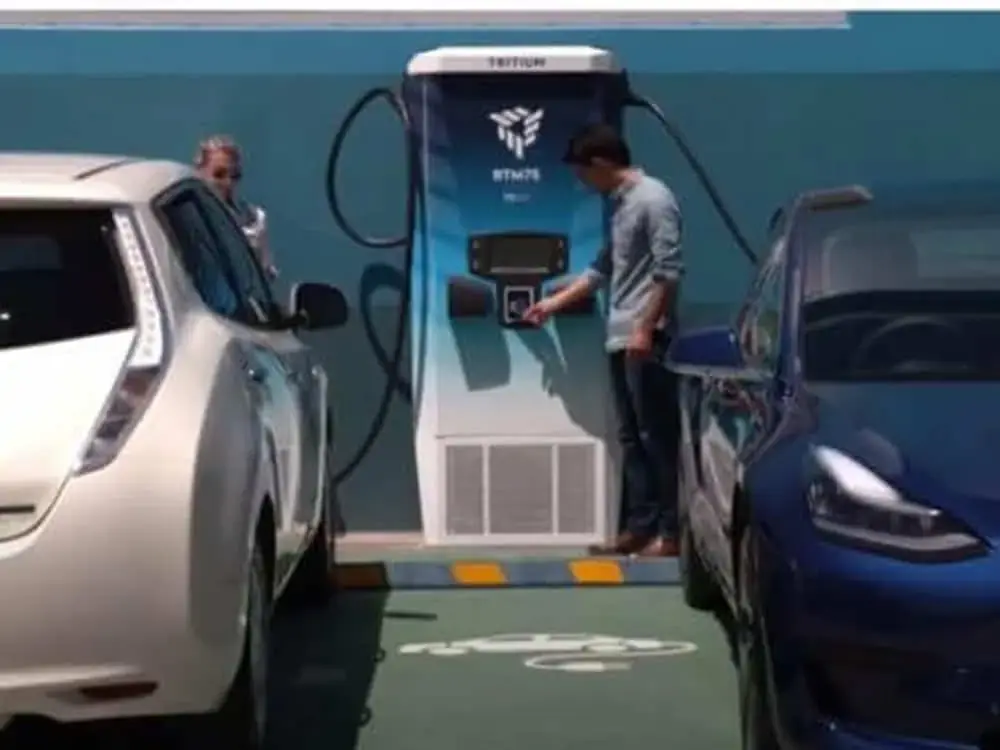

- Dual DC Charging capability ( Can charge two EV’s at once)
Keep this in mind when installing:
For your safety, the installation must be completed by a licensed and qualified electrician who is familiar with Australian industry regulations and is totally accountable for the work.
