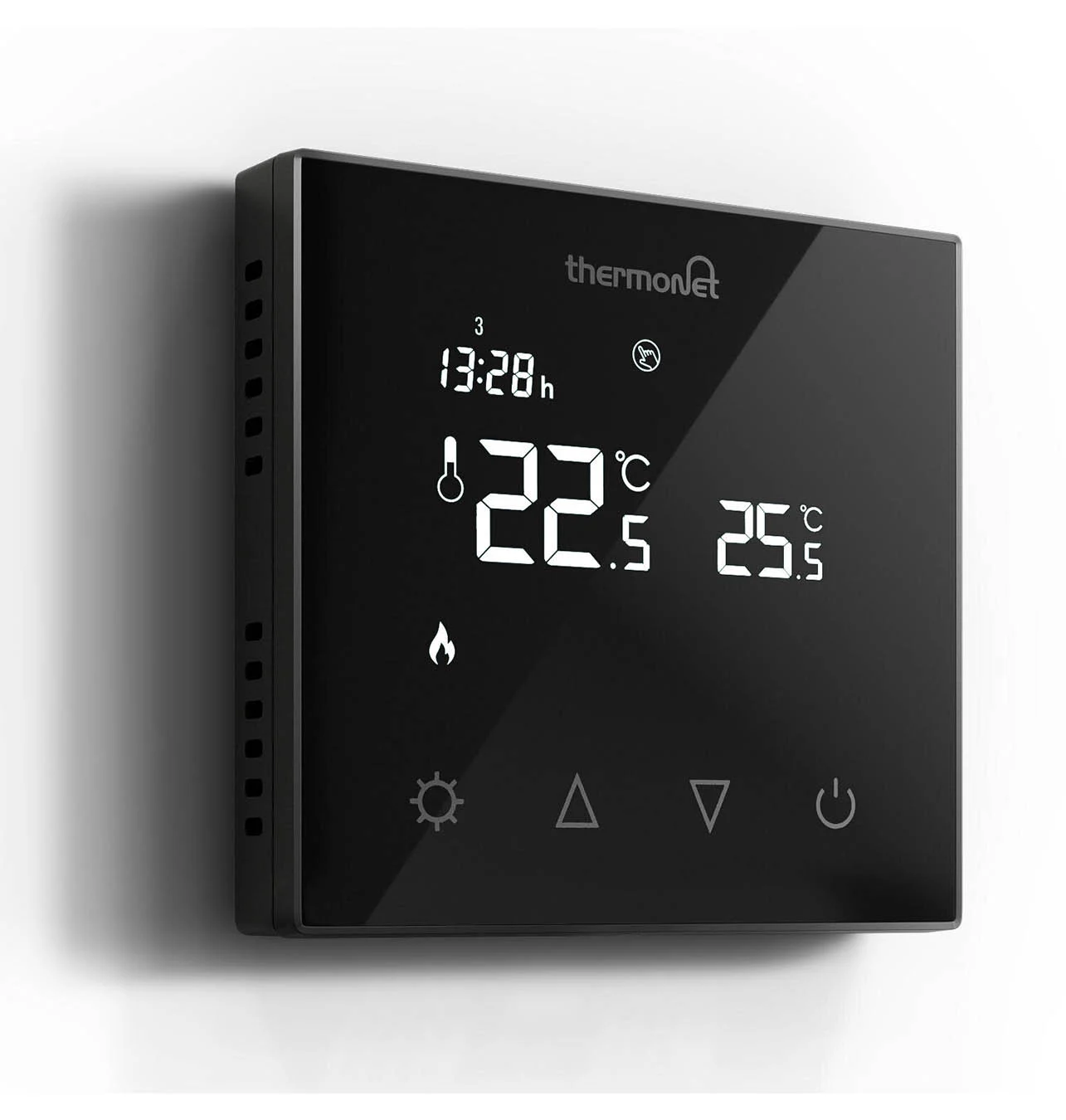

Thermotouch 7.6iG Glass Programmable Thermostat
For a gorgeous modern digital underfloor heating thermostat that offers you great versatile control over your underfloor heating, choose this product. With its easy to use buttons, advanced floor and ambient temperature sensors and its unique 7 day 6 event schedule capability, you are able to program your specific heating needs depended on your weekly schedule.
-
Precise Control: Easy-to-use buttons with advanced temperature sensors.
-
Custom Scheduling: 7-day, 6-event programmable schedule.
-
Sleek Design: Modern digital thermostat for stylish control.
The Thermotouch 7.6iG Programmable Thermostat offers advanced functionality and flexibility, tailored to meet the needs of modern heating systems.
Key Features:
Fully Programmable
The Thermotouch 7.6iG provides a 7-day, 6-event heating schedule, with 6 distinct heating events available on weekends. This allows for optimal temperature control throughout the week, ensuring energy efficiency and comfort.
Flexible Mounting Orientation
The thermostat is designed with a portrait backing plate as the standard configuration. However, a landscape mounting plate is available as an option to suit various installation preferences.
Sensor Mode
For precise temperature regulation, the Thermotouch 7.6iG includes a floor sensor probe, along with the option to integrate an ambient sensor, offering complete control over your heating system’s performance.
Manual Mode
In addition to its programmable features, the Thermotouch 7.6iG includes a simple manual mode, enabling users to easily adjust the temperature of their underfloor heating system according to immediate needs.
This thermostat provides a seamless blend of customizable scheduling, advanced sensor integration, and user-friendly manual controls, all in one sleek and versatile device.

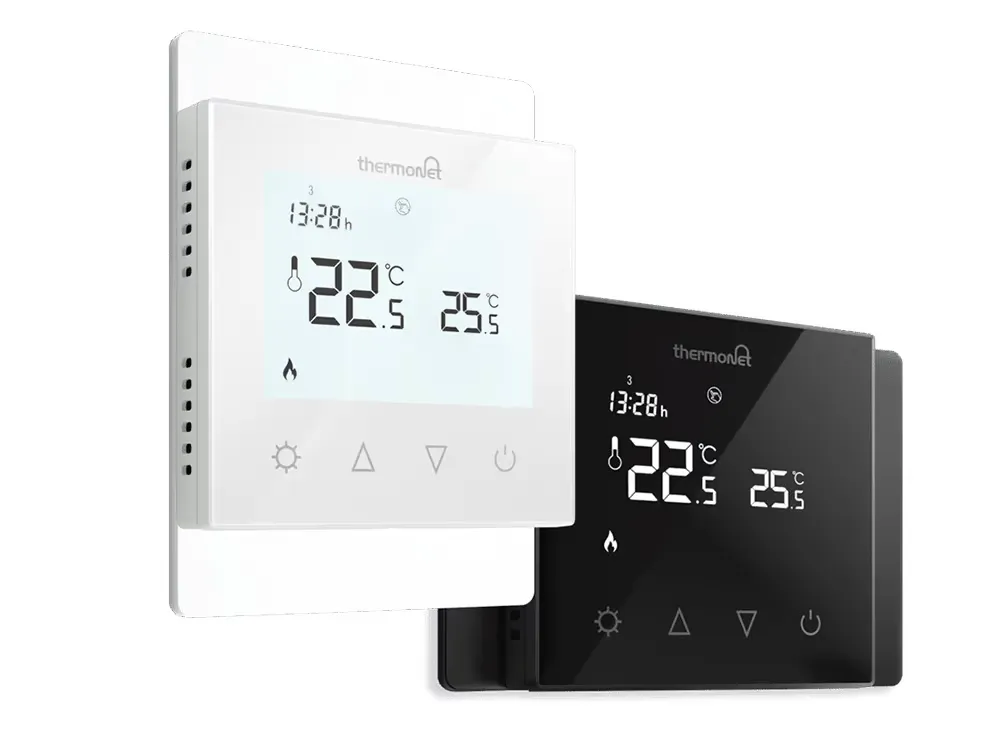

| Stock No. | Size | Colour | Stock Status |
|---|---|---|---|
| 5220A | W85 x H115 x D46mm (26mm in wall) | White | In Stock |
| 5226A | W85 x H115 x D46mm (26mm in wall) | Black | In Stock |
Landscape Mounting Plates
| Stock No. | Description | Size | Colour | Stock Status |
|---|---|---|---|---|
| 5221 | White Landscape Mounting Plate | W115 x H86 x D5mm | White | In Stock |
| 5223 | Black Landscape Mounting Plate | W115 x H86 x D5mm | Black | In Stock |
The 5220A & 5226A come standard as portrait however the landscape mounting plates can be purchased to enable the thermostat to be mounted horizontally
| Size | 85x115x46mm (26mm in wall) |
| Protection Rating | IP30 |
| Max Load | 16A |
| Orientation | Landscape |
| Colour | 5220A: Ice White 5226A: Piano Black |
| Temperature Range | 5 ~ 80°C (0.5°C increments) |
| Sensor rating | NTC 10kΩ @ 25°C |
| Warranty | 3yrs |
-
What should the temperature of my underfloor heating be?
Although each circumstance is unique, it is recommended that you start by setting your underfloor heating to 24°C. Increase or lower the temperature after several days of testing to discover your comfort temperature. Please keep in mind that a 1°C drop in temperature may not have a significant impact on the comfort or warmth of the floor, but it can help to save operating expenses.
-
Is it possible to regulate both my underfloor heating and towel rail with a single controller?
Yes, our Thermotouch 4.3dC dual control thermostat allows you to manage your underfloor heating and towel rail separately from a single controller.
-
When it comes to floor heating, how long should it be left on?
The length of time depends on your lifestyle, the system you’re using, and the temperature you want to achieve.
-
Is it possible to control several zones with a single controller?
No, you’ll need an unique controller for each zone you want to have individual control over.
-
What is a floor sensor, exactly?
A floor sensor is a small probe that is placed beneath the floor, in the space between two lengths of heating cable. This is connected to the thermostat and provides a precise temperature readout of the floor.
-
Can I use C-Bus to manage my underfloor heating?
Yes, make sure your underfloor heating comes with a manual controller that can be connected to and controlled by your C-Bus system.
-
Is the Floor Sensor/probe included with my Underfloor Heating Thermostat?
Yes! Thermogroup’s Underfloor Heating Thermostats include a Floor Sensor as well as a 20mm flexible conduit to install the sensor in, making it easier to repair if necessary. The Floor Sensor and Conduit are located beneath the unit in your Thermostat box.
-
What are the rough-in or first-fix requirements for a controller and underfloor heating?
The electrician will need to connect mains electricity to the thermostat site before roughing in for our underfloor heating and controller. The electrician will next run two 20mm conduits from the thermostat position to the floor, one for the Underfloor Heating Cold Tail and the other for the Floor Sensor. Please see our Conduit Requirements pdf for more information and a graphic representation.
-
What is the purpose of the flexible conduit? Is it necessary for me to install it?
The installation of a conduit for the floor sensor is recommended so that if a floor sensor fails or the thermostat is upgraded, the floor sensor can be replaced without causing damage to the floor covering. If this is not possible, a second-floor sensor should be installed as a backup.
