When it comes to providing electricity, an important decision to make is whether to go with overhead power lines or underground cables. Both options come with their own unique pros and cons. This article aims to delve into and compare these two methods to help determine which is better suited for various situations.
Understanding Overhead Power Lines

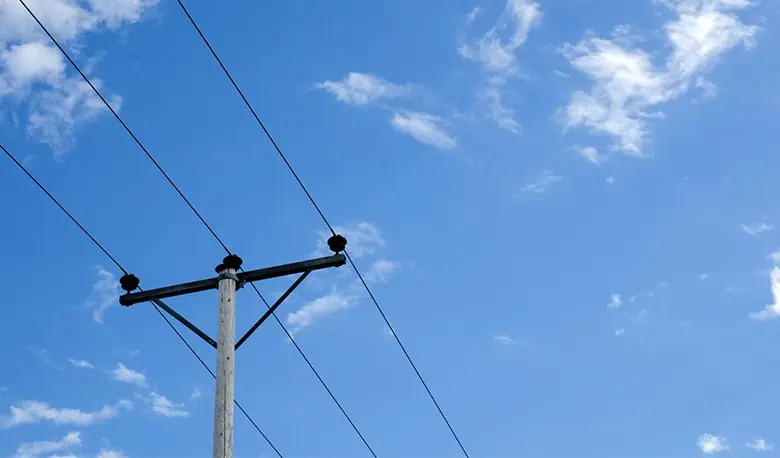

Overhead power lines are the conventional way of transmitting electrical power. These lines consist of tall poles or towers that support conductors, typically made of aluminum or copper, which carry the electrical current from the power source to the end users.
Designing and constructing overhead power lines involves careful consideration of several factors. The choice of conductor material is crucial, as it affects the efficiency and capacity of the transmission. Aluminum conductors are lightweight and cost-effective, making them suitable for long-distance transmission. Meanwhile, copper conductors offer better conductivity and are often used for shorter distances or areas with higher power demands.
Insulators play a vital role in overhead power lines. They’re installed on the poles or towers to support the conductors and prevent electrical current from escaping into the surrounding environment. Typically made of materials like glass or ceramic, insulators have a high dielectric strength to withstand the voltage carried by the conductors.
To ensure the stability and integrity of overhead power lines, guy wires or stay wires are employed. These wires are attached to the poles or towers and anchored to the ground to provide additional support against wind and other external forces. By properly tensioning the guy wires, the poles or towers can withstand the mechanical stresses imposed by the conductors and maintain their desired configuration.
Crossarms are another important component of overhead power lines. They’re attached to the poles or towers and provide a platform for mounting insulators and supporting multiple conductors. The design and spacing of cross arms depend on factors such as conductor size, voltage level, and environmental conditions.
Overhead power lines are subject to various regulations and standards to ensure safety and reliability. Clearance requirements specify the minimum distance between the conductors and the ground, structures, and vegetation. These regulations aim to prevent accidents and minimize the risk of electrocution, especially in areas accessible to the public.
Advantages of Overhead Power Lines
Cost-Effective
Overhead power lines are generally more cost-effective to install compared to underground cables. The construction and maintenance costs are relatively lower, making them a preferred choice for long-distance power transmission.
Easy Maintenance
Overhead lines are easily accessible, which makes maintenance and repairs more straightforward. It’s easier to detect and repair faults in the system, resulting in faster power restoration during outages.
Flexibility
Overhead power lines can be re-routed or modified more easily than underground cables, allowing for future expansions or changes in power distribution.
Disadvantages of Overhead Power Lines
Aesthetic Impact
Overhead power lines can be seen as visually intrusive and may affect the aesthetics of an area, especially in scenic or residential locations.
Susceptibility to Weather
Overhead lines are vulnerable to extreme weather conditions such as storms, strong winds, and lightning strikes, which can cause power outages and disruptions.
Safety Hazards
There is a higher risk of accidents due to the proximity of power lines to the ground. Contact with the lines or falling objects can pose significant safety hazards.
Understanding Underground Cables
Underground cables involve burying electrical cables beneath the ground. These cables are insulated and protected, ensuring safe and reliable electricity transmission. Underground cables represent a modern approach to electrical power transmission, offering several distinct advantages and disadvantages compared to overhead power lines.
Advantages of Underground Cables
Enhanced Aesthetics
Underground cables are not visible, preserving the visual appeal of the surrounding area. This makes them a preferred choice for urban and residential areas where maintaining aesthetics is crucial.
Reduced Outages
Underground cables are less prone to disruptions caused by weather conditions, reducing the frequency and duration of power outages.
Safety
Since underground cables are buried, the risk of accidents due to contact or falling objects is significantly reduced.
Disadvantages of Underground Cables
Higher Installation Costs
Underground cables require specialized equipment and expertise for installation, making them more expensive upfront compared to overhead power lines.
Difficult Maintenance
Detecting and repairing faults in underground cables is more challenging and time-consuming. It often involves excavation, which can disrupt the surrounding environment and cause inconvenience.
Limited Flexibility
Modifying or expanding an underground cable network is more complex and expensive, requiring extensive excavation and replacement of existing infrastructure.
Comparison between Overhead Power Lines and Underground Cables
Several factors influence the choice between overhead power lines and underground cables:
- Environmental Impact
Overhead power lines have a smaller carbon footprint during installation since they require fewer energy-intensive materials. However, they may have a greater impact on the visual landscape. Underground cables have a lower visual impact but may require more energy for manufacturing and installation. - Cost Considerations
Overhead power lines are generally more cost-effective in terms of installation and maintenance. However, underground cables may offer long-term cost benefits due to reduced outages and maintenance requirements. - Reliability and Maintenance
Overhead power lines are easier to maintain and repair, resulting in faster power restoration after outages. Underground cables have a lower risk of disruptions caused by weather conditions but may require more time and effort for fault detection and repair. - Safety and Aesthetics
Overhead power lines have a higher risk of accidents due to their proximity to the ground, while underground cables provide a safer environment. Underground cables also have the advantage of preserving the aesthetics of the surroundings.
Which is better, Overhead or Underground Cables?
The choice between overhead power lines and underground cables depends on various factors such as cost, aesthetics, reliability, and safety. While overhead power lines are more cost-effective and flexible for long-distance power transmission, underground cables offer enhanced aesthetics and reduced outages. It’s crucial to consider the specific requirements and constraints of each situation.
For example, in urban areas where maintaining visual appeal is crucial, underground cables may be the preferred choice. On the other hand, in rural areas with wide open spaces and fewer aesthetic concerns, overhead power lines may be more practical and cost-effective.
Reliability and maintenance are also key considerations. Overhead power lines are easier to maintain and repair, resulting in faster power restoration after outages. However, underground cables are less prone to disruptions caused by weather conditions. This is particularly beneficial in areas prone to storms, high winds, or other extreme weather events.
Safety is of paramount importance in any electrical infrastructure. Overhead power lines have a higher risk of accidents due to their proximity to the ground, while underground cables provide a safer environment. This is especially crucial in areas with heavy pedestrian traffic or where the risk of accidental contact with power lines is high.
Ultimately, the decision should be made after a comprehensive analysis of all relevant factors. Considerations such as environmental impact, cost, reliability, and safety must be weighed against each other to determine the most suitable option for a specific project or location. Collaboration between engineers, urban planners, and stakeholders is crucial to ensure an informed decision that meets the needs of the community and the power distribution requirements.
By carefully evaluating the advantages and disadvantages of overhead power lines and underground cables, it is possible to make an informed decision that maximizes efficiency, reliability, and safety in the electrical power transmission and distribution system.
