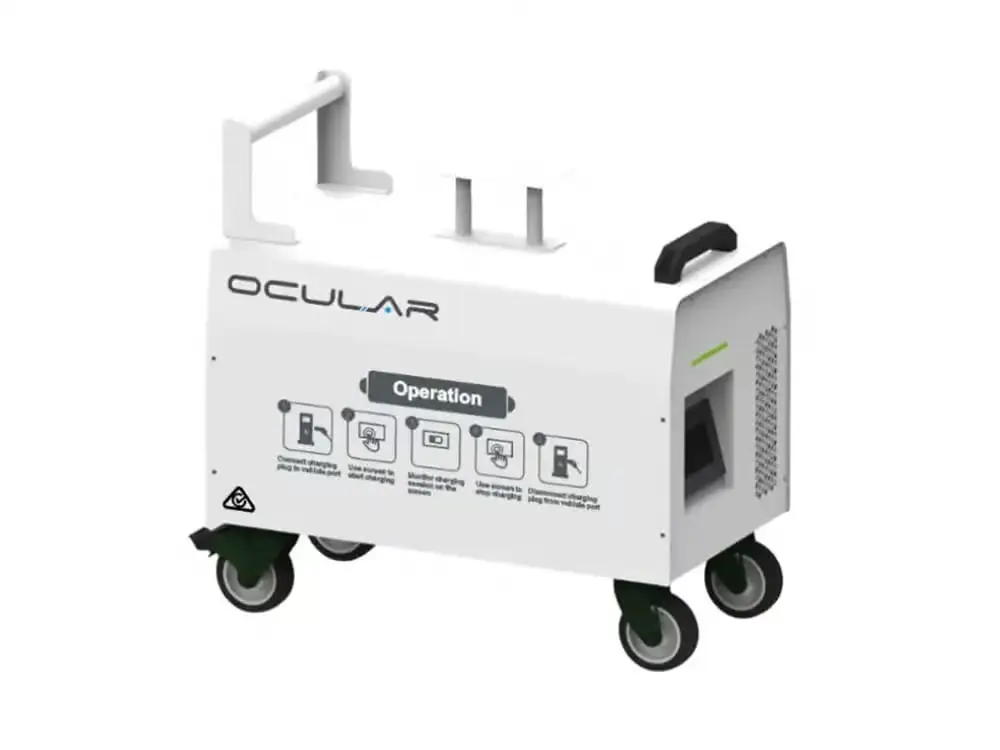

Ocular Roam Portable DC Charging Station | 20 kW

Ocular-Roam-Portable-DC-Charging-Station-20-kW

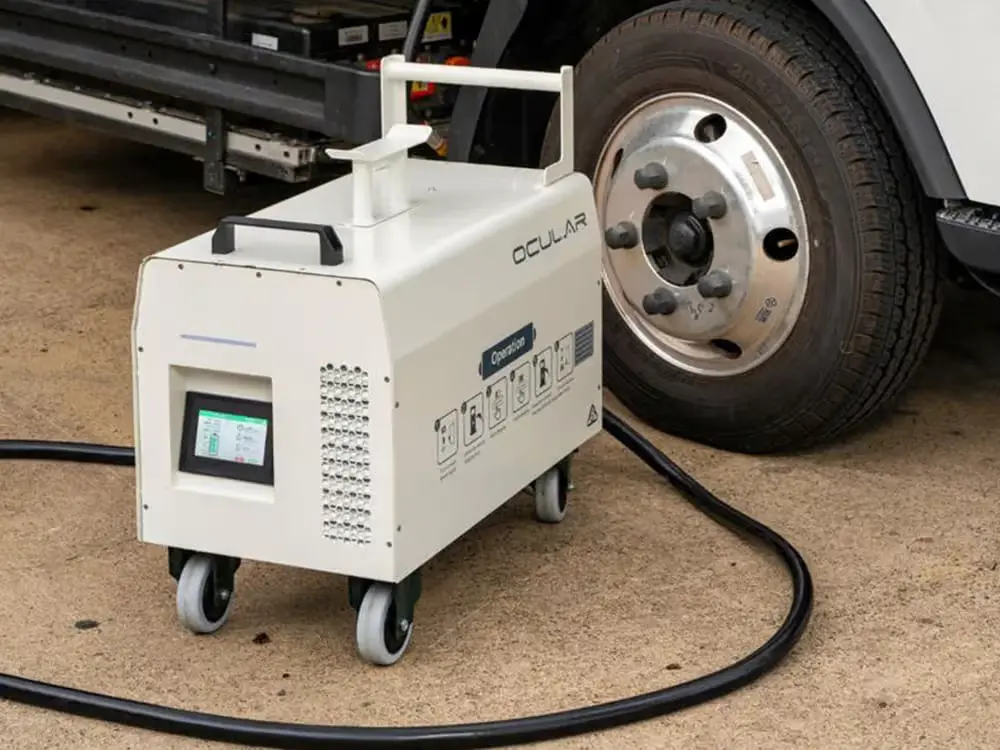

Ocular-Roam-Portable-DC-Charging-Station-20-kW-design-3

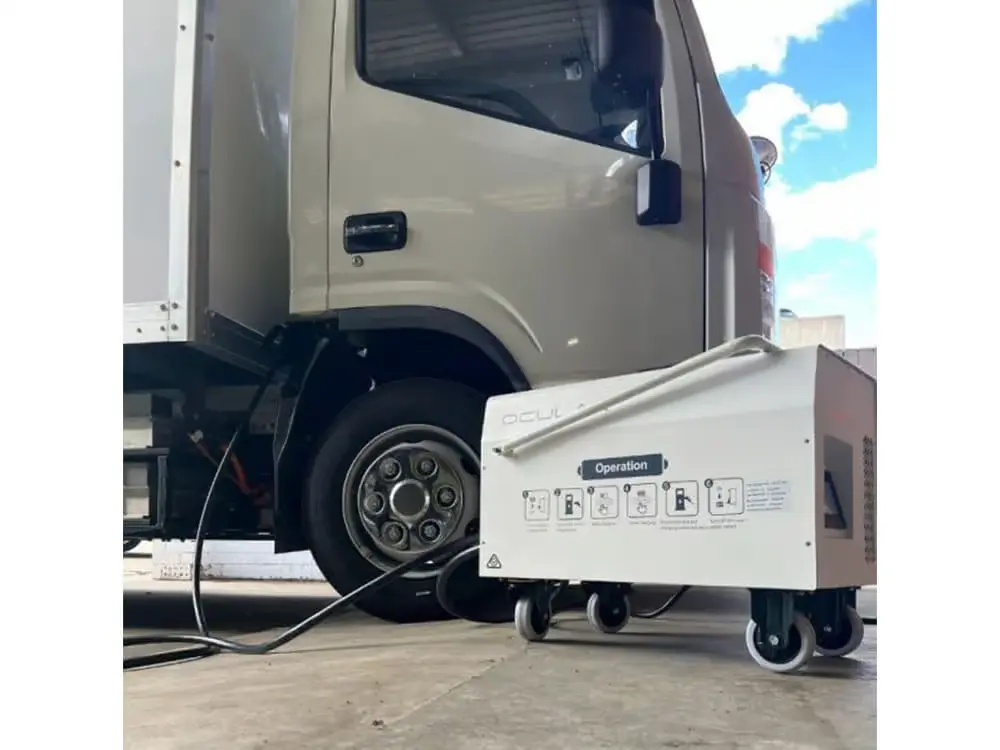

Ocular-Roam-Portable-DC-Charging-Station-20-kW-design-2

The Ocular Portable DC Charger is a mobile fast charging solution designed for all types of electric vehicles, including cars, trucks, and buses. It allows for convenient charging anywhere a high-powered 32Amp 3-phase outlet is available. As a best-in-class portable DC charger, it has reliably powered fleets across Australia.

  • 4G enabled
  • Warranty โ€“ 1 Year
  • OCPP 1.6
  • IP 54
  • Portable with wheels and brake

Electric vehicle drivers can quickly and safely recharge their vehicles at a DC fast charging station.

  • Connects to a standard 32Amp, 3-phase (20kW) electrical socket and is fully portable.

  • Easy-to-use LED controls for user convenience.

  • Complies with both Australian and European standards.

  • Equipped with an LCD monitor for clear viewing.

  • Combo 2 CCS electric vehicle charging station (CHAdeMO available on special order).

  • Delivers up to 95% efficiency with soft-switching technology.

  • Fully compatible with all electric vehicles.

  • 4.3-inch touchscreen display for intuitive operation.

  • User authentication through Mobile App, User Interface, QR Code, RFID Card, or Password Login.

  • Communication interface between charger and CMS via Ethernet/3G/4G/WIFI (Optional).

User Interface & Display Features

  • 4.3-inch touchscreen display for easy interaction.

  • User authentication options: Mobile App, User Interface, QR Code, RFID Card, or Password Login.

  • Metering information: Consumption units.

Communication Requirements

  • Facilitates communication between the EVSE and the central server.

  • Connectivity options: Ethernet/3G/4G/WIFI (optional).

Protection & Safety Standards

  • Conforms to executive standards including IEC 62196 2017, IEC 61851 2017, SAE J1772, CHAdeMO, and more.

  • Safety features: Over-current, under-voltage, residual current, surge protection, leakage protection, short circuit, and over-temperature safeguards.

Input Requirement AC Supply System Three-Phase, 5 Wire AC system
Nominal Input Voltage AC380Vยฑ15%
Input Frequency 45-65Hz
Ambient Temperature Range -25 to 55ยฐC
Ambient Humidity 5 to 95%
Storage Temperature -40 to 70ยฐC
Output ย 200-750V
Single Output Max. Current 80 Amp
