Ocular IQ Dual Port Tower | 2 x 22 kW | Three Phase

The Ocular Dual Port Tower features a stunning LCD panel that provides real-time feedback, allowing for the simultaneous charging of two EVs. Through OCPP connectivity, the tower also allows users to configure billing and monitor a full network of EV charging stations.

  • OCPP 1.6J
  • Warranty – 2 Years
  • Capable of Billing via OCPP
  • Smart Phone App via OCPP
  • Charging Speed – 2 x 22kW (120 kilometers per hour of charge)
  • Suitable for: Compatible with all-electric vehicles and models from Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes-Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo).50 kilometers per hour of charge

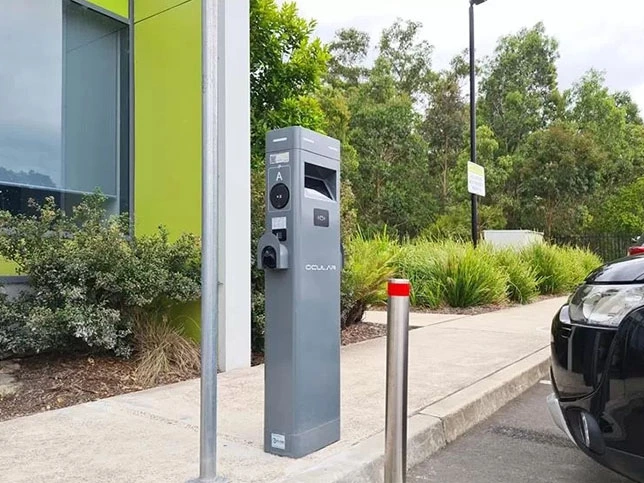

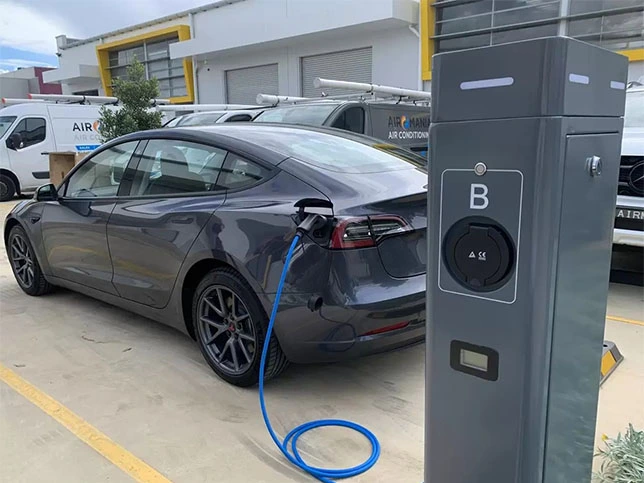

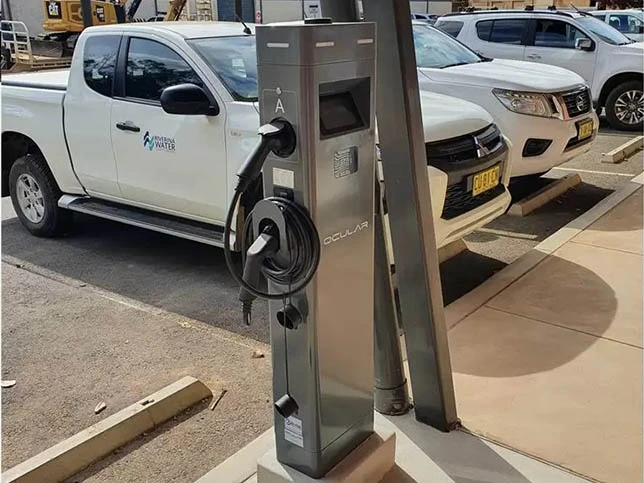

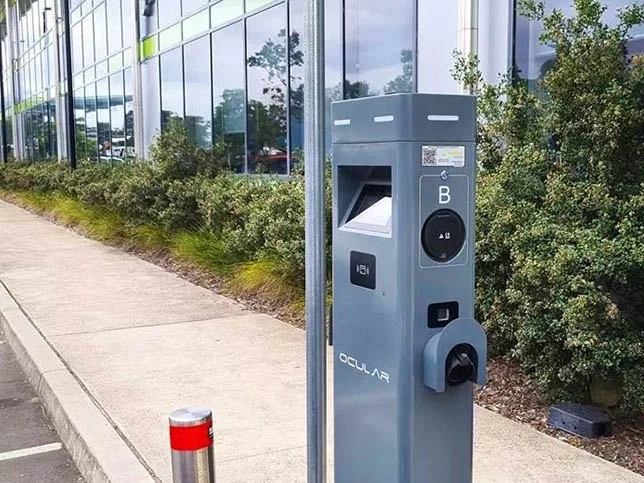

The Ocular IQ Tower is the ideal solution for both business and public outdoor charging needs. This high-quality, affordable EV charging point provides full Mode 3 rapid charging to any electric vehicle in Australia, housed in a durable metallic frame. Each charging outlet on this dual unit can deliver 22kW of power.

Thanks to OCPP 1.6J connectivity, the charger can be easily integrated with any charging management system, making operation, monitoring, and billing seamless.

Distinctive Design:
Features a 7” LCD display with exceptional clarity, a unique design, and LED indicators.

Compatibility:
Supports easy back-end integration with OCPP 1.6J and 2.0.

Multiple Charging Standards Supported:
Compatible with Type-1 connectors, Type-2 connectors, and Type-2 sockets.

Available Models:
Options include a 1-phase 7kW model and a 3-phase 22kW model.

Flexible Output Current:
Output current can be adjusted remotely through the back office for added flexibility.

MODEL IOCAP06C-7/IOCAP06C-7T IOCAP06C-22/IOCAP06C-22T
Input Voltage & Current 230V±20%, 32A per phase 230V±20%, 32A per phase
Frequency (Hz) 50/60Hz 50/60Hz
Charging Connector Type-2 socket/ Tethered cable Type-2 socket/ Tethered cable
Power Output 7.2kW (1- Phase) 22kW (3- Phase)
Output Voltage 230V ± 20% 400V ± 20%
Output Current 32A MAX per phase 32A MAX per phase
Display 7″ LCD screen 7″ LCD screen
User Authentication RFID Card, Mobile App, Remote Access RFID Card, Mobile App, Remote Access
Operating Temperature -30°C to +55°C in operation -30°C to +55°C in operation
Storage Temperature -40°C to +75°C in storage -40°C to +75°C in storage
Working Humidity 95% relative humidity, non-condensing 95% relative humidity, non-condensing
Internal RCD 2 x Inbuilt 32A type B RCD (30mA AC & 6mA DC) 2 x Inbuilt 32A type B RCD (30mA AC & 6mA DC)
IP Performance IP54 IP54
Meter Meter IC or MID Meter Meter IC or MID Meter
Internet connection Ethernet + 4G +Wi-Fi Ethernet + 4G +Wi-Fi
Mounting Pedestal Type Pedestal Type
Charging Cable Length Tethered model only – 4.5m Tethered model only – 4.5m
Dimension (H x W x D, mm) 1420 x 340 x 195 mm 1420 x 340 x 195 mm
Net Weight (1- Phase) 38kg (socket type) | 48kg (tethered) (3- Phase) 40kg (socket type) | 50kg (tethered)
Recommended circuit breaker 1 x 80 MCB or 2 x 40A MCBs 1 x 80 MCB or 2 x 40A MCBs
Recommended cable size (50m run) 1 x 16mm² or 2 x 10mm² 2C+E (1-phase) 4C+E (3-phase) 1 x 16mm² or 2 x 10mm² 2C+E (1-phase) 4C+E (3-phase)
Certificate IEC /EN 61851-1, IEC/EN 61851-21-2 CE, IEC /EN 67857-7, IEC/EN 67857-23, IEC/EN 67857-27-2, RCM
Warranty 2years 2years
Electrical Protection Over current, Short circuit, Over voltage, Under voltage,
Ground fault, Lightning Surge, Over temperature		 Over current, Short circuit, Over voltage, Under voltage,
Ground fault, Lightning Surge, Over temperature
