Ocular IQ Commercial | 7 kW | OCPP 1.6J

Your ideal experience is the focus of the Ocular IQ Commercial. Ocular gives you the freedom to communicate and stay updated without hassle. We are aware of how wonderful it is when cutting-edge technology performs exactly as desired. With OCPP compatibility the unit provides EV software for billing and fleet monitoring needs.

  • OCPP 1.6J
  • Warranty – 2 Years
  • Capable of Billing via OCPP
  • Smartphone Application via OCPP
  • Charging Speed – 7kW (50 kilometers per hour of charge)
  • Suitable for: Compatible with all-electric vehicles and models from Audi, BMW, BYD, EQC, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes-Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo).50 kilometers per hour of charge

Ocular IQ Commercial offers an affordable, high-quality EV charging solution that provides full Mode 3 rapid charging for any electric vehicle in Australia. The charger can be easily integrated with any charging management system via OCPP, enabling seamless operation, monitoring, and maintenance.

Distinctive Design:

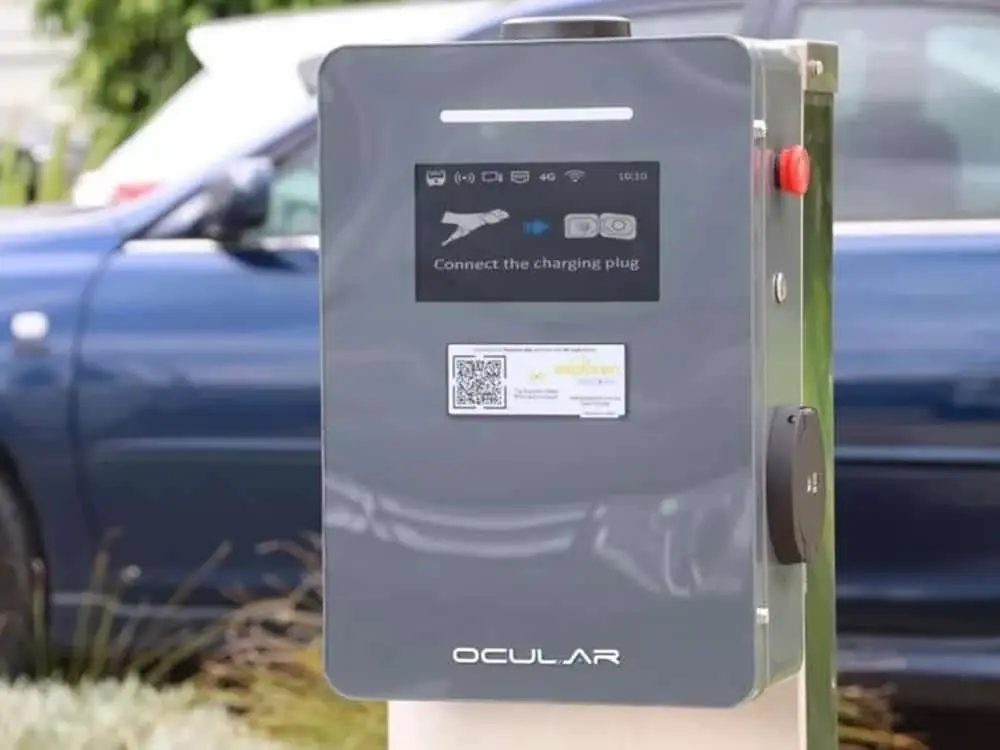

The charger features a 7” LCD display with exceptional clarity, a unique design, and LED indicators for enhanced visibility.

Compatibility:
It supports easy back-end integration with OCPP 1.6J and 2.0 for smooth functionality.

Multiple Charging Standards Supported:
The charger is compatible with Type-1 connectors, Type-2 connectors, and Type-2 sockets.

Available Models:
Options include a 1-phase 7kW model and a 3-phase 22kW model.

Flexible Output Current:
The output current can be adjusted remotely through the back office for greater flexibility.

MODEL IOCAH10R-7S/IOCAH10R-7T IOCAH10R-22S/IOCAH10R-22T
Input Voltage & Current 230V±20%, 32A per phase 230V±20%, 32A per phase
Frequency (Hz) 50/60Hz 50/60Hz
Charging Connector Type-2 socket/ Tethered cable Type-2 socket/ Tethered cable
Power Output 7.2kW (1- Phase) 22kW (3- Phase)
Output Voltage 230V ± 20% 400V ± 20%
Output Current 32A MAX per phase 32A MAX per phase
Display 7″ LCD screen 7″ LCD screen
User Authentication RFID Card, Mobile App, Remote Access RFID Card, Mobile App, Remote Access
Operating Temperature -30°C to +55°C in operation -30°C to +55°C in operation
Storage Temperature -40°C to +75°C in storage -40°C to +75°C in storage
Working Humidity 95% relative humidity, non-condensing 95% relative humidity, non-condensing
Internal RCD Inbuilt 32A type B RCD (30mA AC & 6mA DC) Inbuilt 32A type B RCD (30mA AC & 6mA DC)
IP Performance IP54 IP54
Meter Meter IC or MID Meter Meter IC or MID Meter
Internet connection Ethernet + 4G +Wi-Fi Ethernet + 4G +Wi-Fi

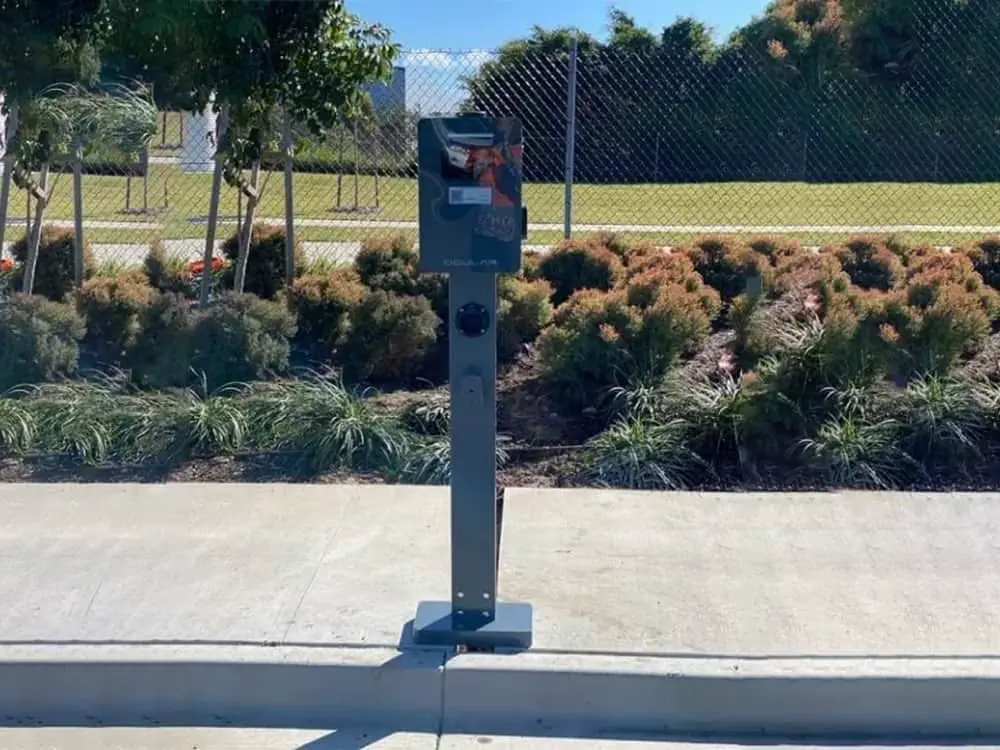

Mounting Wall-Mount/ Pole-Mount Wall-Mount/ Pole-Mount

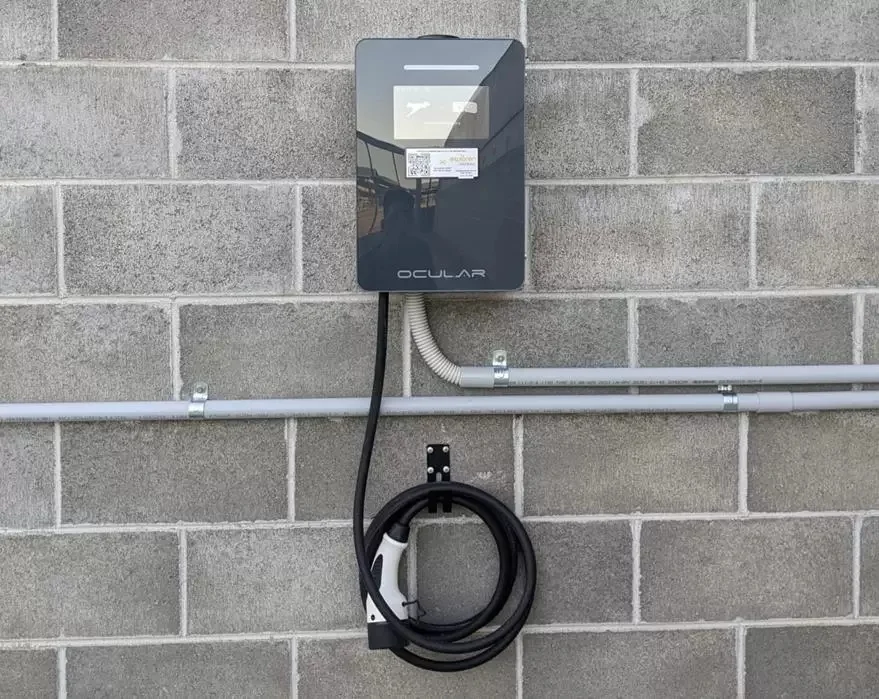

Charging Cable Length Tethered model only – 5m Tethered model only – 5m
Dimension (H x W x D, mm) 400 x 270 x 130 mm 400 x 270 x 130 mm
Net Weight (1- Phase) 10kg (socket type) | 12.4kg (tethered) (3- Phase) 11.2kg (socket type) | 13.8kg (tethered)
Recommended circuit breaker 40A single phase MCB 40A three-phase MCB
Recommended cable size (50m run) 10mm2 2C+E 10mm2 4C+E
Certificate IEC /EN 61851-1, IEC/EN 61851-21-2 CE, IEC /EN 67857-7, IEC/EN 67857-23, IEC/EN 67857-27-2, RCM
Warranty 2years 2years
Electrical Protection Over current, Short circuit, Over voltage, Under voltage,
Ground fault, Lightning Surge, Over temperature		 Over current, Short circuit, Over voltage, Under voltage,
Ground fault, Lightning Surge, Over temperature
