Ocular Home | Universal Charging Station

The Ocular Home Single Phase EV Charging Station combines a stylish compact charging station with a class-leading LCD screen that displays real-time charging information. Start charging with vision instead of blank wallboxes. The Ocular unit is a future-proof option for any home, as it is compatible with every EV in Australia, including Tesla.

ocular-home-ev-wallbox

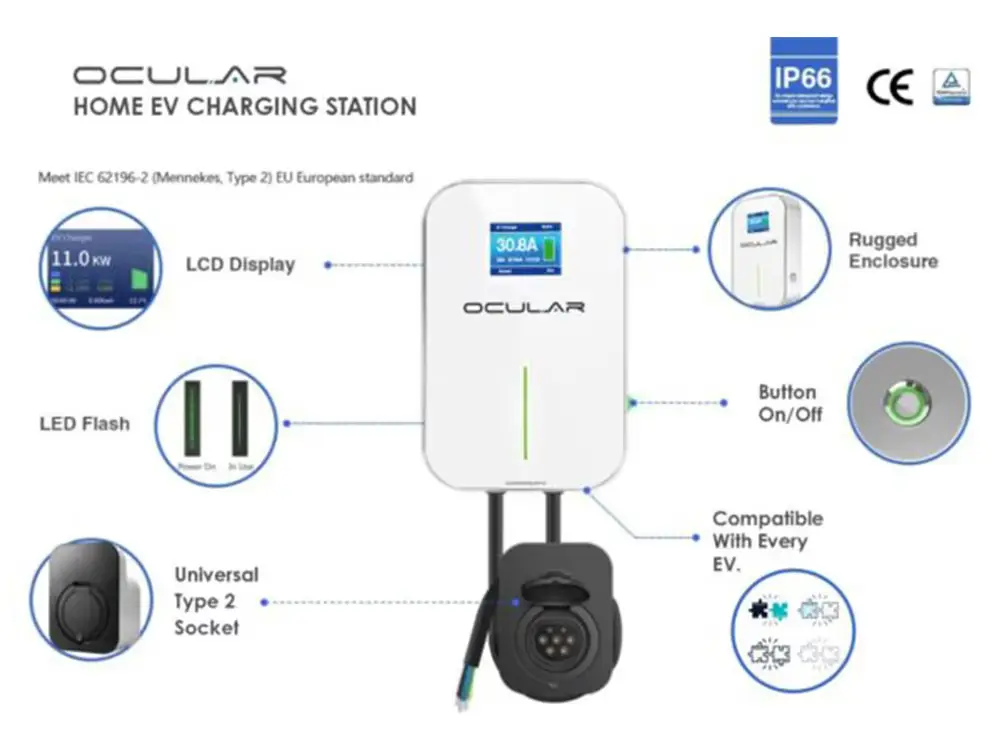

Main Features

It has a bright LCD display that shows the current charging status, including charging time, voltage, current internal temperature, and so on.

During charging, non-hardware defects will be automatically repaired. On the LCD panel, faults that require manual repair will be presented. The housing is weatherproof, with an IP66 rating. It is simple to mount on the wall. We may provide a matching wallbox if the customer likes it to be put on the stand.

Input & Output

  • Input voltage/Output voltage – AC 230V
  • Input frequency – 50Hz
  • Max. output power – 7.4KW(1 Phase)
  • Max. output current – 32Amp
  • Charging interface type – IEC 62196-2, SAE J1772

Protection

  • Over voltage protection
  • Under voltage protection
  • Over load protection
  • Short circuit protection
  • Earth leakage protection
  • Over-temp protection
  • Lightning protection

Function and Accessory

  • LCD – 3.5 inch
  • RCD – Type A + 6mA DC
  • LED Indicator light

Working environment

  • Protection degree – IP66
  • Environment temperature – -40 ~ 75 Degrees Celcius
  • Relative humidity – 0-95%
  • Cooling – Natural Air Cooling
  • Standby power consumption – <8W

Mechanical

  • Dimension (W/H/D) – 295/195/65mm
  • Weight – 6 kg

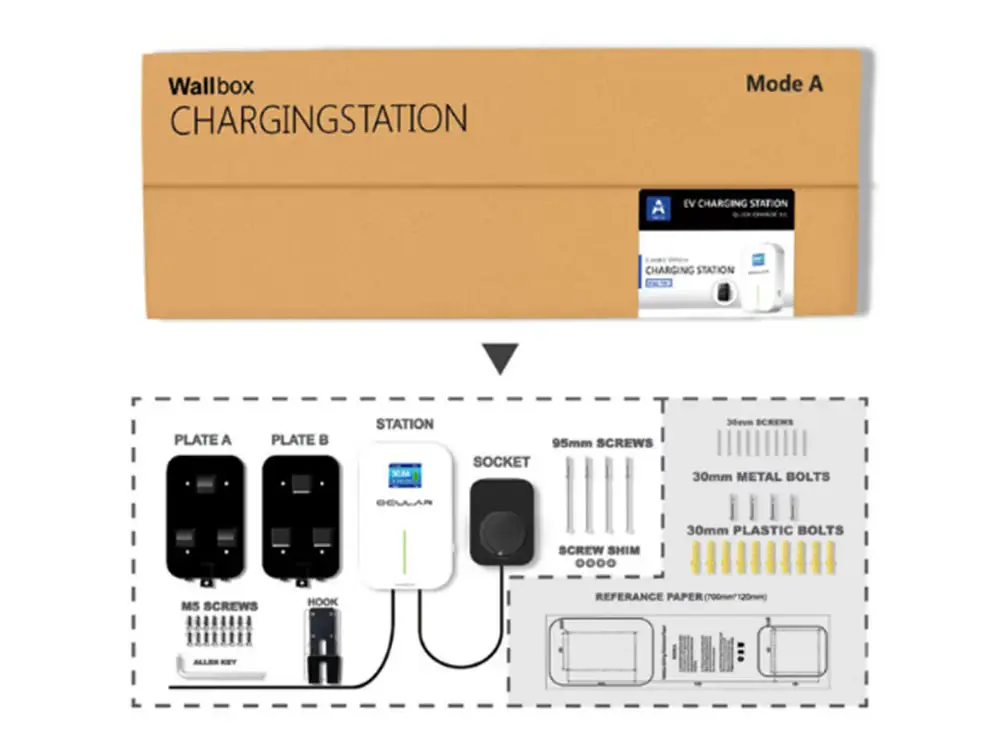

Mounting Accessories

  • Wall-mounting bracket
  • Ground-mounting pole – Optional

Certificate

  • CE, TUV, FCC, CSA, RoHS

Faster charging

You can charge up to 4-12 times faster with the Ocular Universal charging station range than you can with a traditional household portable charger.

Simple To Use, Easy to Install

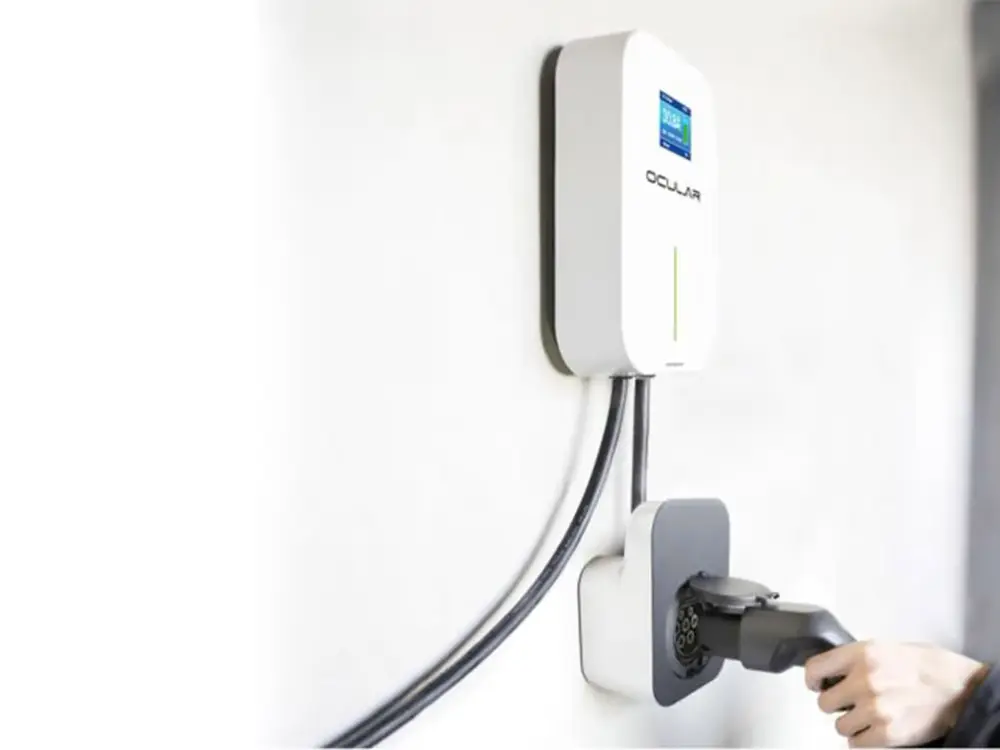

With the unit preset, the Ocular Wallbox is simple to install. The electrician only needs to mount it and connect it to the home’s electrical panel. You may charge your electric automobile with a handle once it’s been installed. At all times, the multicolored LCD displays the current functioning status.

Integrated Cable Holder

The included cable holder neatly wraps and protects your EV equipment, demonstrating Ocular’s focus on the user experience.

Multiple Variations

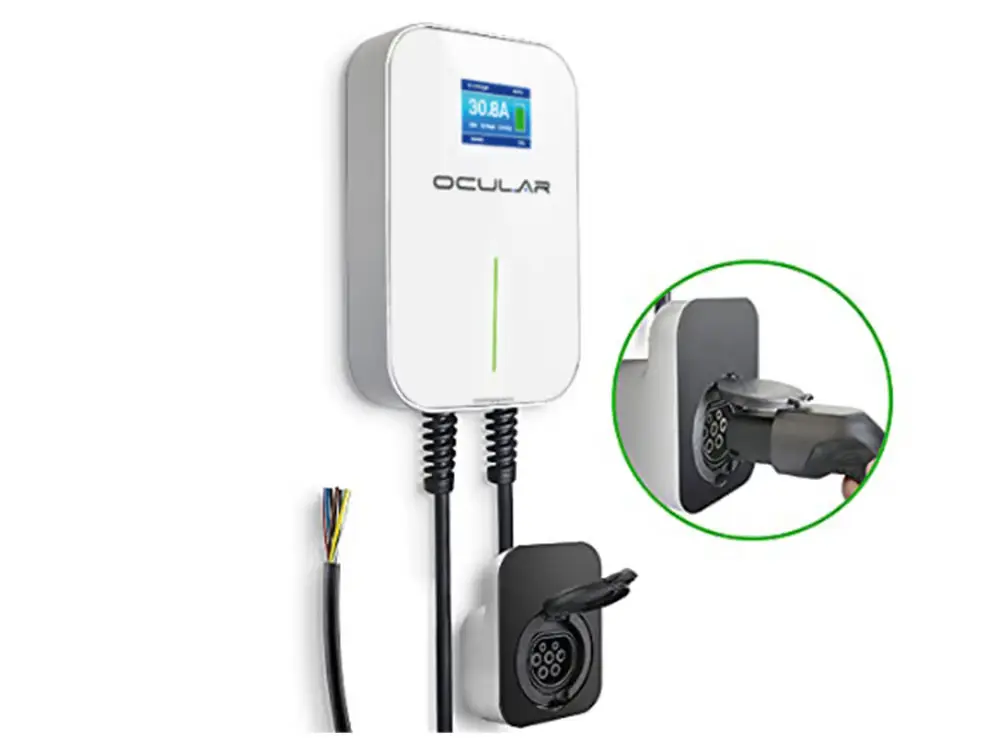

Choose between a universal charging station and a unit that comes with a 6m Type 2 cable plugged in. Single-phase and three-phase options are available.

Charge every EV in Australia

This EV charger is compatible with every EV in Australia, including Teslas. We recognize that individuals don’t retain the same EV for a long time, and your EV charging solution should allow you to upgrade or add more EVs to your home.

Australian Owned

100% Australian-owned and operated, with Australian-based assistance. Make sure your charging station is backed by a local company and that your warranty is protected by Australian consumer laws.

Keep this in mind when installing:

For your safety, the installation must be completed by a licensed and qualified electrician who is familiar with Australian industry regulations and is totally accountable for the work.

Specification

Weight 6 kg
KW 7kW
Amp 32 Amp Single Phase
Warranty 2 Year
Types Universal
