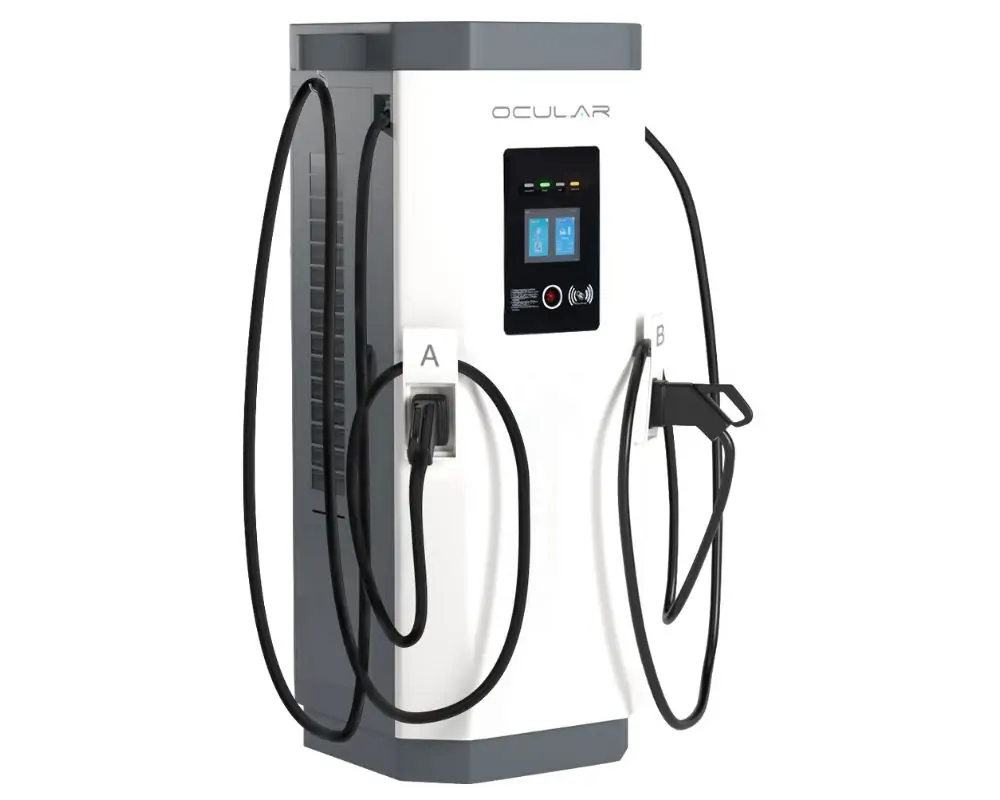

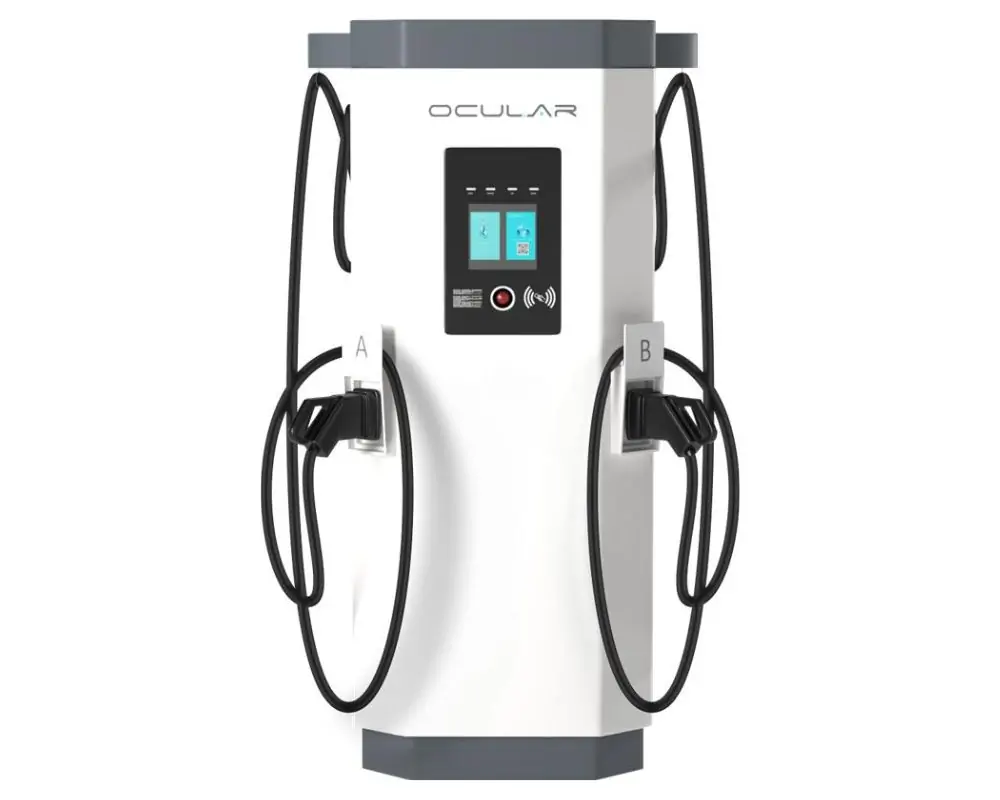

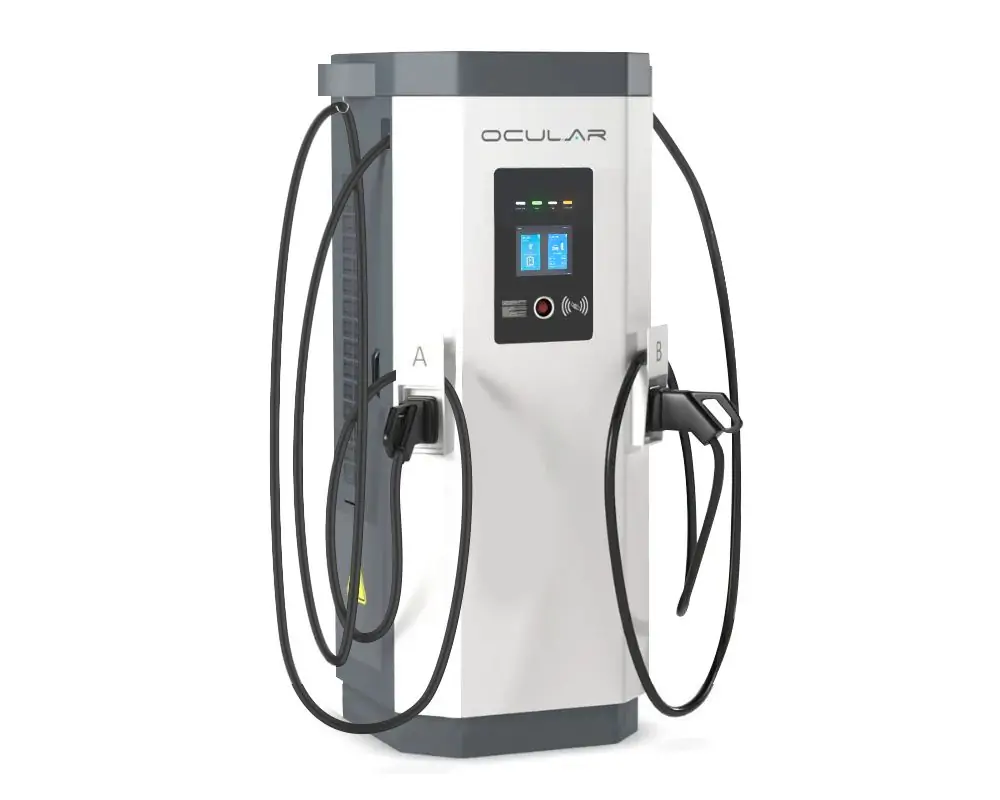

Ocular Atlas DC Charger | 60kW | Dual Charger CCS2
The Ocular Dual DC Charger delivers convenient, high-speed charging for electric vehicles, featuring a sturdy metal casing and an easy-to-use 8-inch LED display. It is designed to support vehicles with high-voltage battery systems and is fully compatible with all major EV brands in Australia.
- Ideal for offices, commercial settings, or roadside use.
- Charging Speed: 60 kW (providing 360 km of range per hour of charging).
- Charges 2 EVs simultaneously (split as 30 kW per vehicle).
- Suitable for: All-electric vehicles equipped with DC charging capabilities.
The Ocular Atlas Dual DC Charger is engineered to provide fast and convenient charging for electric vehicles, featuring a sturdy metal casing and an intuitive 8-inch LED display. This system is capable of powering vehicles with high voltage battery systems, making it highly versatile. Its compact size and touchscreen interface make it an excellent choice for both public and fleet use. Unlike many other chargers, the Ocular system is designed to charge two vehicles simultaneously, allowing you to double the number of vehicles serviced.
The Ocular comes standard with dual CCS2 ports, with additional configurations available upon request, including CHAdeMO and CCS1. It is compatible with all major electric vehicle brands in Australia.
As an Australian-owned and operated company, Ocular Charging ensures all parts and servicing are locally available to maximize uptime and reliability.
The Ocular Titan dual DC Charger is offered in various models ranging from 60kW to 180kW.
| Feature | Details |
|---|---|
| Connectors | CCS2 x 2 (Option for CHAdeMO and CCS1) |
| Power | 1000V โ 60kW |
| Cable | 200Amp CCS2 Cable |
| Power Modules | 30kW Power Modules for easy servicing |
| Supply Input | 260V-530V AC |
| Supply Frequency | 50-60 Hz |
| IP Rating | IP55 |
| Warranty | 2 Years |
| Cable Length | 5m Phoenix Contact Cable |
| Cooling | Forced Air Cooling |
| Authentication | RFID, OCPP App enabled |
| Payment Option | Credit Card upgrade available |
| Efficiency | >95% |
| Power Factor | 0.99 |
| Display | 8-inch Touchscreen |
| Operating Temperature | -35ยฐC to 55ยฐC |
| Network Connection | 4G and Gigabit Ethernet |
| OCPP Version | OCPP 1.6J |
| Weight | 450 kg |
| Dimensions | 1816(H) x 1007(W) x 750(D) mm |
| Certifications | CE, RCM |
| Electrical Protection | Over current, short circuit, under voltage, ground fault, lightning surge, over temperature |
