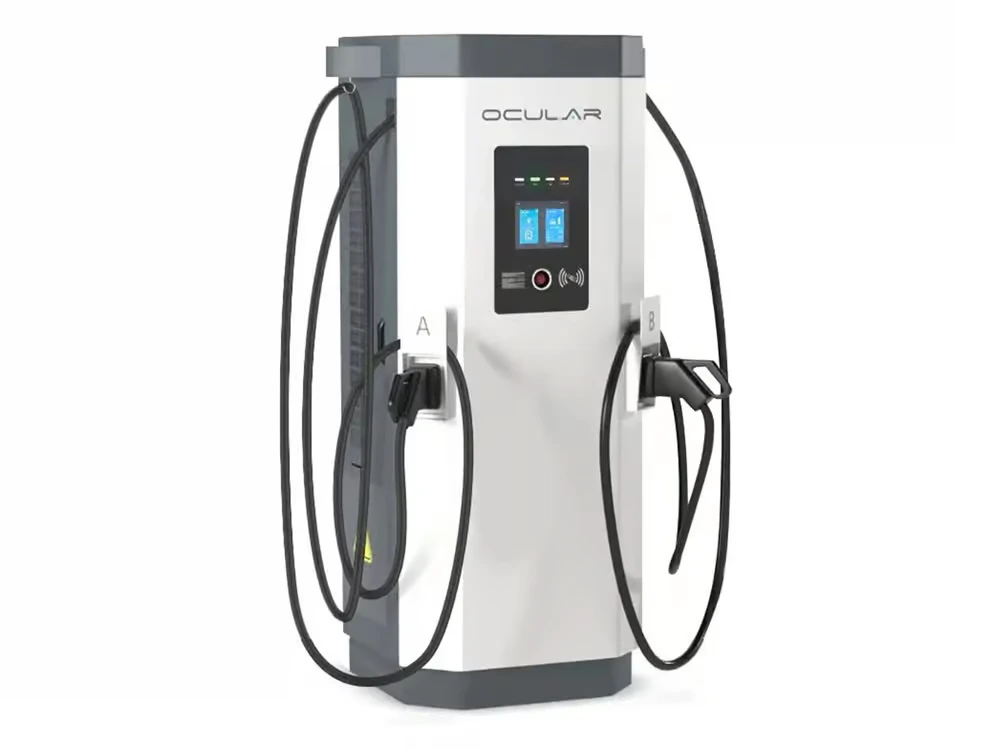

Ocular Atlas DC Charger | 180kW | Dual Charger CCS2
The Ocular Dual DC Charger delivers convenient, high-speed charging for electric vehicles, featuring a sturdy metal casing and an easy-to-use 8-inch LED display. It is designed to support vehicles with high-voltage battery systems and is fully compatible with all major EV brands in Australia.
-
Ideal for office, commercial use, or roadside locations.
-
Charging Speed: 180 kW (up to 1040 km of driving range per hour of charge).
-
Can charge 2 electric vehicles simultaneously (split at 90 kW each).
-
Compatible with all electric vehicle brands and models, including Audi, BMW, BYD, Deepal, EQC, Geely, Holden, Honda, Hyundai, Jaguar, KIA, Mazda, Mercedes-Benz, Mini, MG, Mitsubishi, Nissan, Polestar, Porsche, Renault, Rivian, Tesla, Toyota, Volkswagen, Volvo, Xpeng, Zeekr, and more. If you’re unsure whether this charging station suits your EV, please contact our team.
The Ocular Atlas Dual DC Charger is built to quickly charge electric vehicles with its sturdy metal casing and a user-friendly 8-inch LED display. It is also capable of powering vehicles with high-voltage battery systems. Its compact design and touchscreen interface make it ideal for both public and fleet use. Unlike many other chargers, the Ocular system is designed to charge two vehicles at once, effectively doubling your vehicle servicing capabilities.
The Ocular Atlas comes standard with dual CCS 2 ports, with additional configurations available upon request, including Chademo and CCS1. This unit is compatible with all major electric vehicle brands in Australia.
As an Australian-owned and operated company, Ocular Charging ensures that all parts and servicing are locally available, providing maximum uptime and reliability.
Important Installation Information:
For your safety, installation must be conducted by a licensed and qualified electrician who is familiar with Australian industry standards. The electrician is fully responsible for the installation process.
Please note that the charging speed is also dependent on the vehicle. The unit provides a maximum of 250 Amps multiplied by the vehicle’s voltage.
| Connectors | CCS2 x 2 (Option for CHAdeMO and CCS1) |
| Power | 1000V β 180kW |
| Cable | 250Amp CCS2 Cable |
| Power Modules | 30kW Power Modules for easy servicing |
| Supply Input | 260V-530V AC |
| Supply Frequency | 50-60 Hz |
| IP Rating | IP55 |
| Warranty | 2 Years |
| Cable Length | 5m Phoenix Contact Cable |
| Cooling | Forced Air Cooling |
| User Authentication | RFID, OCPP App enabled |
| Credit Card Upgrade | Available |
| Efficiency | >95% |
| Power Factor | 0.99 |
| Display | 8 inch Touchscreen |
| Operating Temperature | -35Β°C to 55Β°C |
| Network Connection | 4G and Gigabit Ethernet |
| OCPP | OCPP 1.6J |
| Weight | 450 kg |
| Dimensions | 1816(H) x 1007(W) x 750(D) mm |
| Certifications | CE, RCM |
| Electrical Protection | Over current, short circuit, under voltage, ground fault, lightning surge, over temperature |
