EVlink Pro DC | 60kW Wallbox | Fast Charging Station | CCS2 + CCS2 Connectors | 5m Cable with Cable Management System

The EVlink Pro DC is a next-generation fast charging station, offering flexible and sustainable smart charging solutions for modern buildings and future-ready fleets. Designed to optimize energy efficiency and uptime, the EVlink Pro DC ensures a smooth and reliable experience for both drivers and installers.

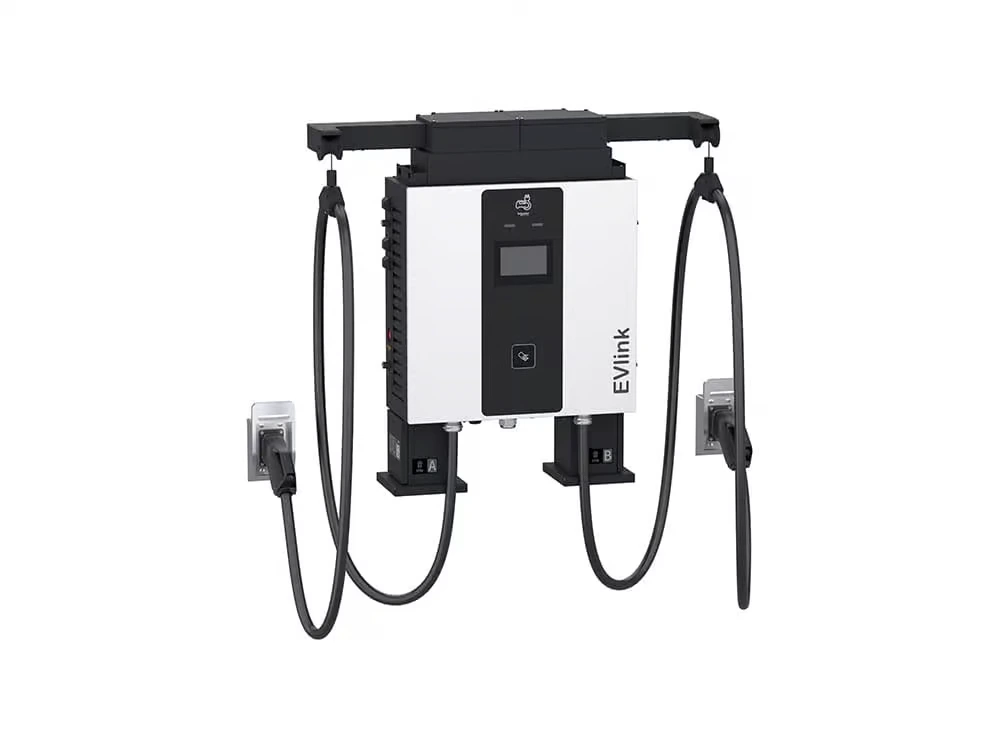

EVlink Pro DC 60kW Wallbox Fast Charging Station
  • Safe & Reliable – Compliant with strict standards, charger tested in factory and designed for high reliability
  • Easy – to install, to use, and to operate
  • Flexible – Wall mounted or pedestal installation for limited footprint allocation
  • Flexible – Including two vehicle connectors for simultaneous charging
  • Peace of mind – Worldwide customer care center with premium support

Main

Range EVlink
Product Name EVlink Pro DC
Product or Component Type Fast charging station
Type of installation Indoor/outdoor
Poles Description 3P + N + E

Complementary

Range compatibility EVlink EVlink Field Services
EVlink EVlink Load Management System
Device application Electrical Vehicle charger
Mounting location Wall mounting

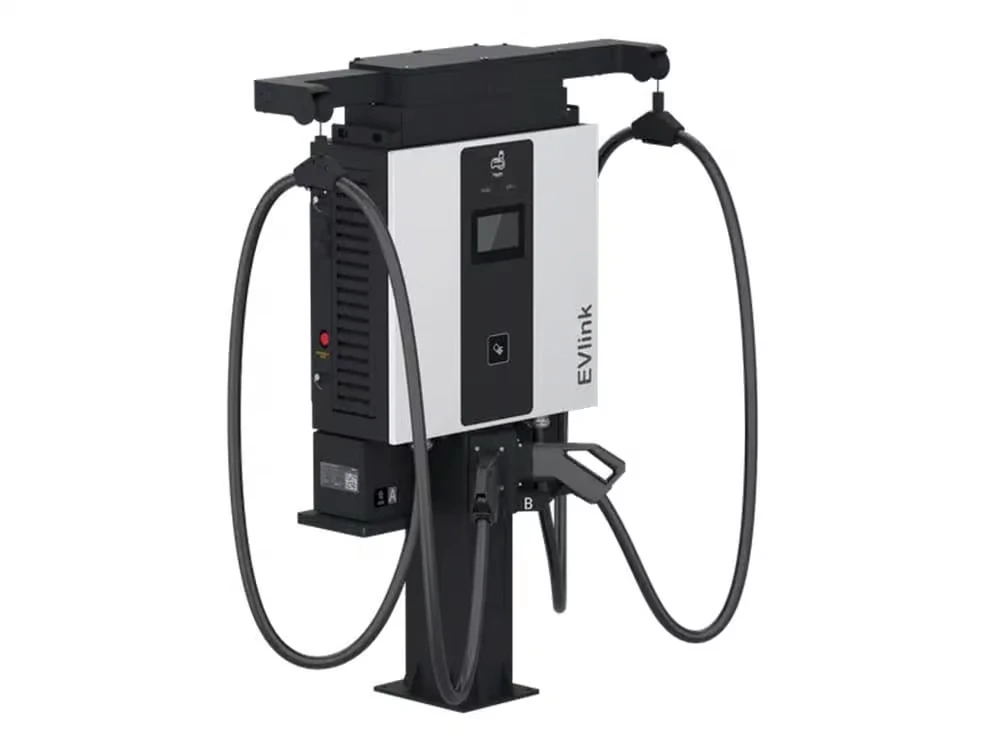

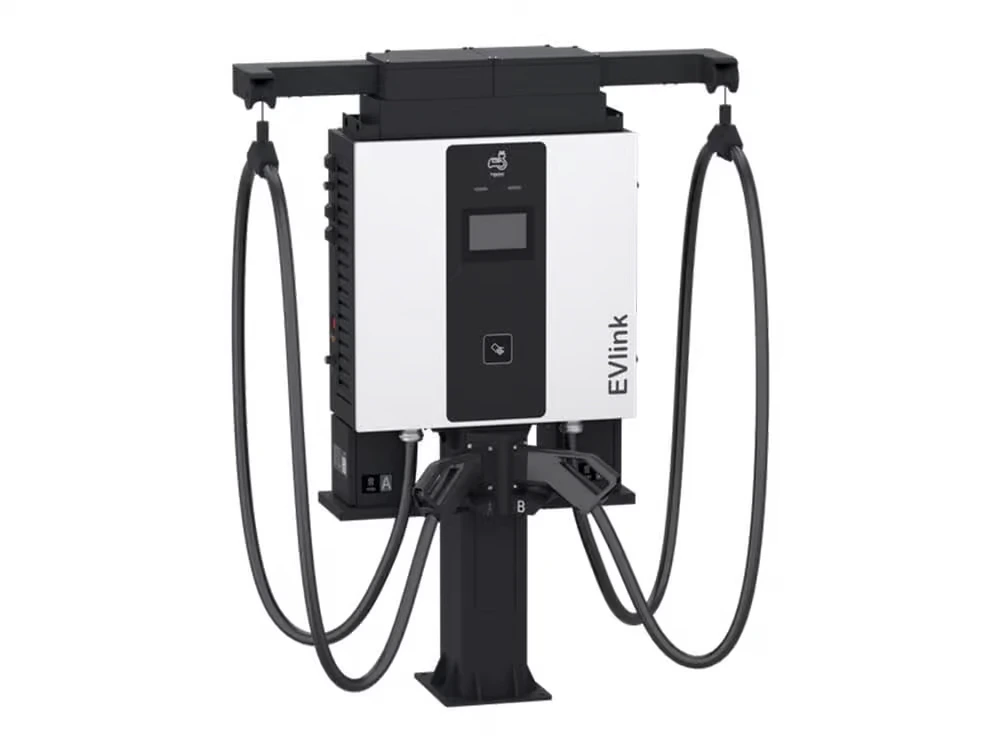

Floor stand with pedestal (to be ordered separately)
Earthing system TN-S
TN-C-S
TT
Compatible IT with additional isolation transformer on the power supply
[Us] rated supply voltage 380...415 V AC at 50 Hz, 3 phases + neutral
Input current 97…107 A
Nominal output power SAE CCS Combo 2: 60 kW at 1.5…200 A, 150...1000 V, DC
Output type Side: 2 charging cable of 5 m
Number of outputs 2
Connector type SAE CCS Combo 2
Provided equipment 1 meter display per output
cable management system
Protection type Short-circuit protection on output
Overload protection
Ground fault protection
Residual current breaker with
overcurrent protection (RCBO)
Temperature rise protection
Access control system Badge RFID conforming to ISO/IEC 14443 A and B
Badge NFC
Display type LCD touch screen : 7 inch
Main user language (constantly evolving) Danish, Dutch, English, French, German, Norwegian, Spanish
Control button type Charge interruption button
Material Enclosure: stainless steel 304 Aluminium
Colour Front face: signal white (RAL 9003)
Body: black (Pantone black C)
Efficiency 95 %
Power factor 0.99
Ambient air temperature for operation -30…55 °C (with derating above 50 °C)

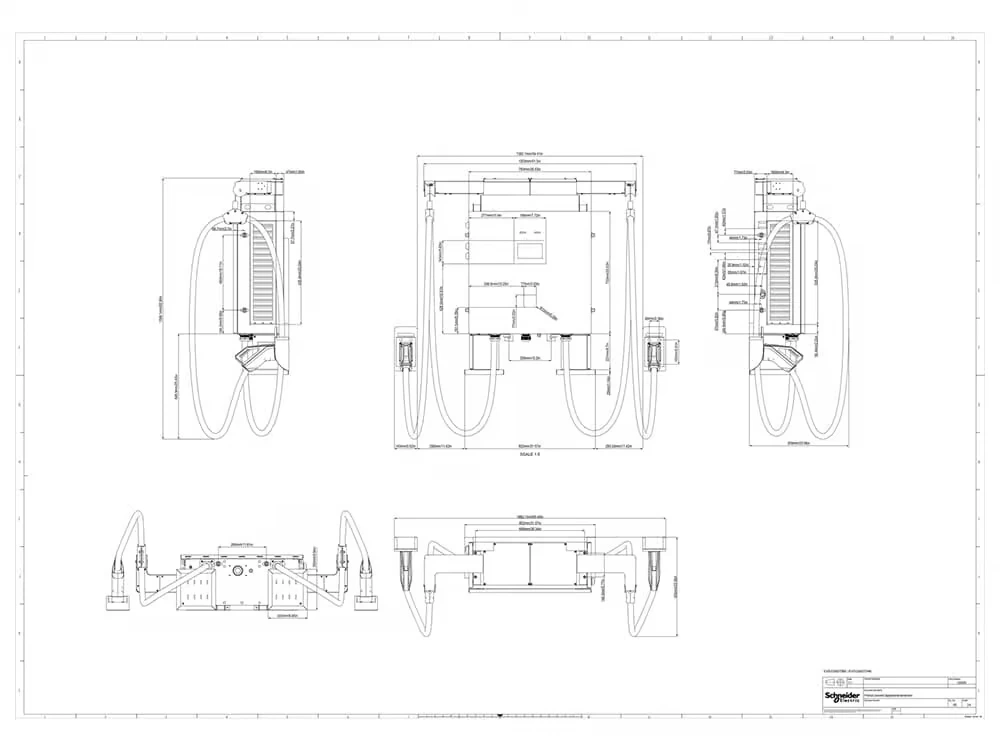

Height 1204 mm
Width 1303 mm
Depth 339 mm
Net weight 131 kg (without power module)
161 kg (with power module)
Services Commercial service plan
Commissioning service
Warranty extension up to 5 years
Repair service
Ethernet service Web browser
Communication port protocol OCPP 1.6
Communication network type 4G
WLAN
TCP/IP
Wi-Fi

Environment

Electromagnetic compatibility Immunity for industrial environments
Emission standard for industrial environments
IP degree of protection IP55
IK degree of protection IK10
Screen: IK08
Ambient air temperature for storage -40…70 °C
Operating altitude 0...2000 m
Relative humidity 5…95 %, without condensation
Standards IEC 61851-1:ed. 3
IEC 61851-23:ed. 1
IEC 62196-1
IEC 62196-3
EN/IEC 61000-6-2:2005
EN/IEC 61000-6-4:class A
ISO 15118
DIN 70121
Atmospheric-corrosivity category C3

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 77 cm
Package 1 Width 125 cm
Package 1 Length 110 cm
Package 1 Weight 221 kg
