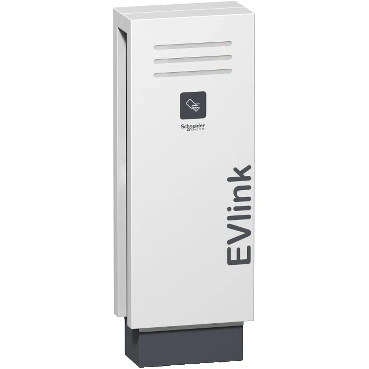

EVlink Parking Floor Standing 7KW 1xT2 With Shutter EV Charging Station
EVlink Parking charging systems are available in a variety of parking locations, including workplaces, hotels, supermarkets, fleets, municipalities, and more.
-
Efficient 7kW Charging: Delivers reliable and fast charging for electric vehicles, ideal for commercial and public spaces.
-
Safety Features: Includes a single T2 socket with a safety shutter for secure and hassle-free charging.
-
User-Friendly Design: Compact and intuitive interface for a seamless charging experience.
The EVlink Parking Floor Standing Charging Station is compact design and user-friendly interface enhance the charging experience for all electric vehicle users.
Efficient 7kW Charging
- 7kW charging for electric vehicles.
- Single T2 socket for easy access.
- Ideal for commercial parking and public charging stations.
Safety and Convenience
-
Equipped with a safety shutter for secure charging.
-
Compact design and user-friendly interface.
-
Seamless setup with Schneider EV charger installation service.
Tailored Charging Solution
- Suitable for both commercial and public spaces.
- Maximizes user convenience and charging performance.
- Installed by professionals from Calibre Connect for optimal performance.
Ensure reliable and efficient charging with EV Charger Installation services by Calibre Connect. Contact us to get started with your commercial EV charger installation and have our professionals handle it with precision and care.
| Attribute | Value |
|---|---|
| Range | EVlink |
| Product Name | EVlink parking |
| Product or Component Type | Charging station |
| Device Short Name | EVF2 |
| Poles Description | 1P + N for power circuit |
| 1P + N for control circuit | |
| Mounting Mode | Floor-standing |
| Offer Type | Standard |
| Rated Supply Voltage | 230 V AC 50/60 Hz control circuit |
| 220…240 V AC 50/60 Hz control circuit | |
| Earthing System | TT, IT, TN |
| Socket-outlet Number | 1 |
| Socket-outlet Type | Right: T2 with shutter/silver plated contacts |
| Maximum Supply Current | 32 A for T2 with shutter |
| Max Power | 7 kW for T2 with shutter |
| Control Type | 1 red push-button, function: stop |
| 1 green illuminated push-button, function: start/unlock flap | |
| Local Signalling | On charge: 1 LED (green) (flashing) on side |
| Available: 1 LED (green) on front | |
| Reserved: 1 LED (orange) on front | |
| Not operational: 1 LED (red) on front | |
| Communication Port Protocol | OCPP 1.6 |
| Configuration / Architecture | Clustered architecture |
| Standalone | |
| Operation And Maintenance | Postponed charge |
| Load management | |
| User privilege configuration | |
| Diagnosis capabilities | |
| Charge detail records | |
| Circuit breaker status | |
| Web Server | Embedded |
| Ethernet Service | Configuration via web server |
| Standards | IEC 61851-22 |
| IEC 61851-1 | |
| Product Certifications | CE |
| CB | |
| ZE Ready | |
| EV Ready | |
| Height | 1146 mm |
| Width | 413 mm |
| Depth | 220 mm |
| Net Weight | 50 kg |
| Colour | Front: white (RAL 9003) |
| Side: grey (RAL 7016) | |
| IP Degree of Protection | IP54 off load conforming to IEC 61851-1 |
| IP54 on load conforming to IEC 61851-1 | |
| IK Degree of Protection | IK10 charging station conforming to IEC 61851-22 |
| IK10 socket-outlet conforming to IEC 61851-22 | |
| Ambient Air Temperature for Operation | -30…50 °C conforming to IEC 61851-22 |
| Ambient Air Temperature for Storage | -40…80 °C |
| Operating Altitude | 0…2000 m conforming to IEC 61851-22 |
| Relative Humidity | 0…95 % |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 61.031 kg |
| Package 1 Height | 75 cm |
| Package 1 Width | 81 cm |
| Package 1 Length | 121 cm |
| Sustainable Offer Status | Green Premium product |
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive | Compliant |
| EU RoHS Declaration | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | Yes |
| China RoHS Regulation | China RoHS declaration |
| Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
