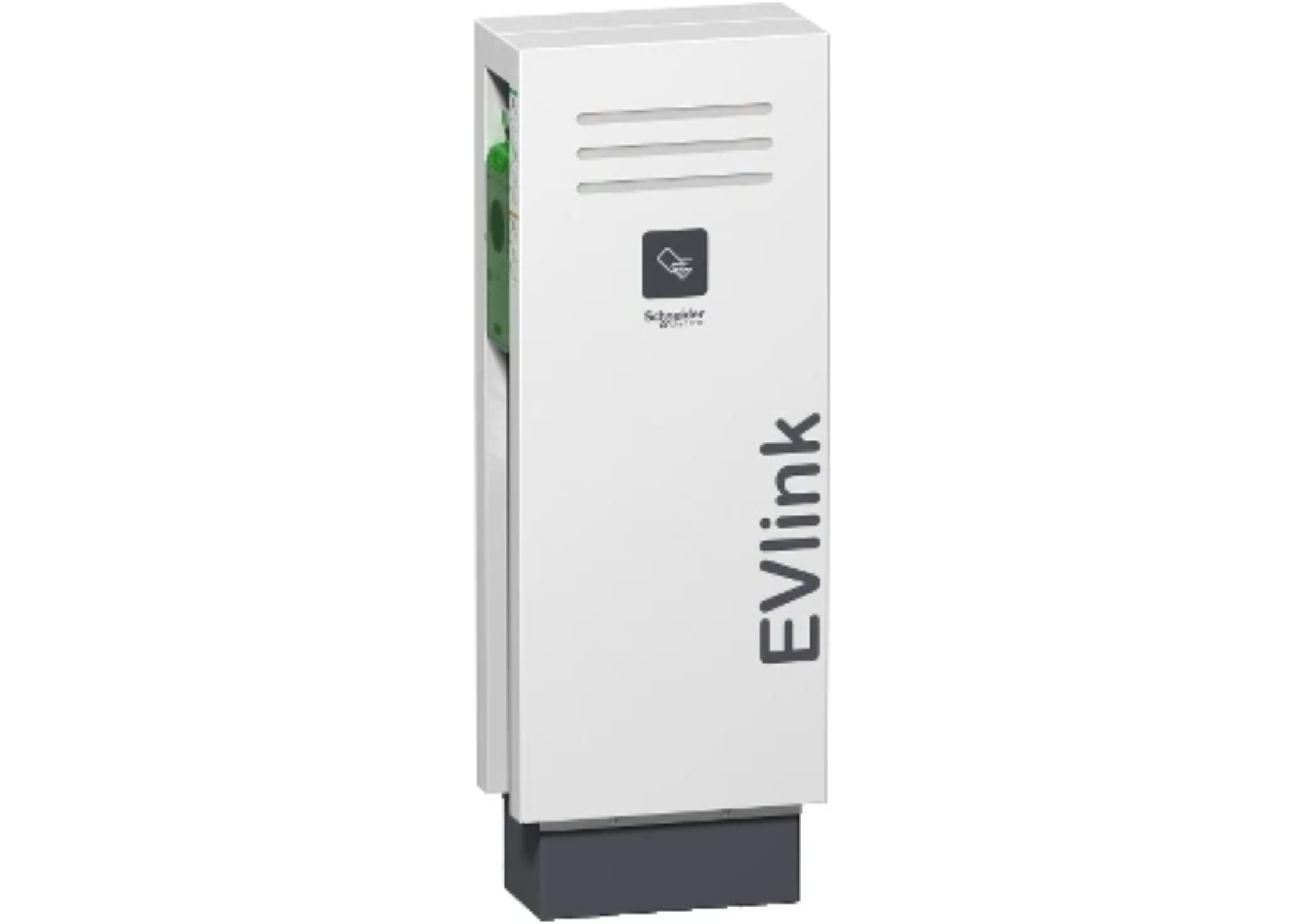

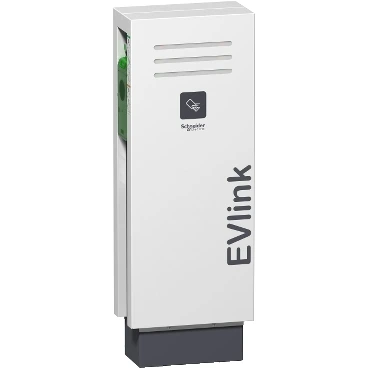

EVlink Parking Floor Standing 22KW 2xT2 With Shutter EV Charging Station
EVlink Parking charging systems are available in a variety of parking locations, including workplaces, hotels, supermarkets, fleets, municipalities, and more.
The EVlink Parking Floor Standing Charging Station provides an impressive 22kW output, designed for fast and efficient charging of electric vehicles in commercial and public spaces. Featuring a single T2 socket with a safety shutter, this station ensures secure charging. With built-in RFID technology, it allows for controlled access, making it an excellent solution for parking facilities and fleet operations. Our professional Schneider EV charger installation service ensures a hassle-free setup, maximizing performance and user convenience. Choose the EVlink Parking Station for a powerful and reliable charging experience tailored to your needs.
Ensure reliable and efficient charging with EV Charger Installation services by Calibre Connect. Contact us to get started with your commercial EV charger installation and have our professionals handle it with precision and care.
Main
| Range | EVlink |
| Product Name | EVlink parking |
| Product or Component Type | Charging station |
| Device Short Name | EVF2 |
| Poles Description |
3P + N for power circuit 1P + N for control circuit |
| Mounting Mode | Floor-standing |
| Offer Type | Standard |
| Rated Supply Voltage |
230 V AC 50/60 Hz control circuit 380...415 V AC 50/60 Hz power circuit |
| Earthing System |
TT IT TN |
| Socket-outlet Number | 2 |
| Socket-outlet Type |
Right: T2 with shutter / silver plated contacts Left: T2 with shutter / silver plated contacts |
| Maximum Supply Current | 32 A for T2 with shutter |
| Max Power | 22 kW for T2 with shutter |
Complementary
| Control Type |
2 red push-button, function: stop 2 green illuminated push-button, function: start/unlock flap |
| Local Signalling |
On charge: 2 LED (green) (flashing) on side Available: 2 LED (green) on front Reserved: 2 LED (orange) on front Not operational: 2 LED (red) on front |
| Communication Port Protocol | OCPP 1.6 |
| Configuration /Architecture |
Clustured architecture Standalone |
| Operation And Maintenance |
Postponed charge Load management User privilege configuration Diagnosis capabilities Charge detail records Circuit breaker status |
| Web Server | Embedded |
| Ethernet Service | Configuration via web server |
| Standards |
IEC 61851-22 IEC 61851-1 |
| Product Certifications |
CE CB ZE Ready EV Ready |
| Height | 1146 mm |
| Width | 413 mm |
| Depth | 220 mm |
| Net Weight | 50 kg |
| Colour |
Front: white (RAL 9003) Side: grey (RAL 7016) |
Environment
| IP Degree Of Protection |
IP54 off load conforming to IEC 61851-1 IP54 on load conforming to IEC 61851-1 |
| IK Degree Of Protection |
IK10 charging station conforming to IEC 61851-22 IK10 socket-outlet conforming to IEC 61851-22 |
| Ambient Air Temperature For Operation | -30…50 °C conforming to IEC 61851-22 |
| Ambient Air Temperature For Storage | -40…80 °C |
| Operating Altitude | 0...2000 m conforming to IEC 61851-22 |
| Relative Humidity | 0…95 % |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 58 kg |
| Package 1 Height | 38 cm |
| Package 1 Width | 45 cm |
| Package 1 Length | 128 cm |
Offer Sustainability
| Sustainable Offer Status | Green Premium product |
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant EU RoHS Declaration |
| Mercury Free | Yes |
| RoHS Exemption Information | Yes |
| China RoHS Regulation |
China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
