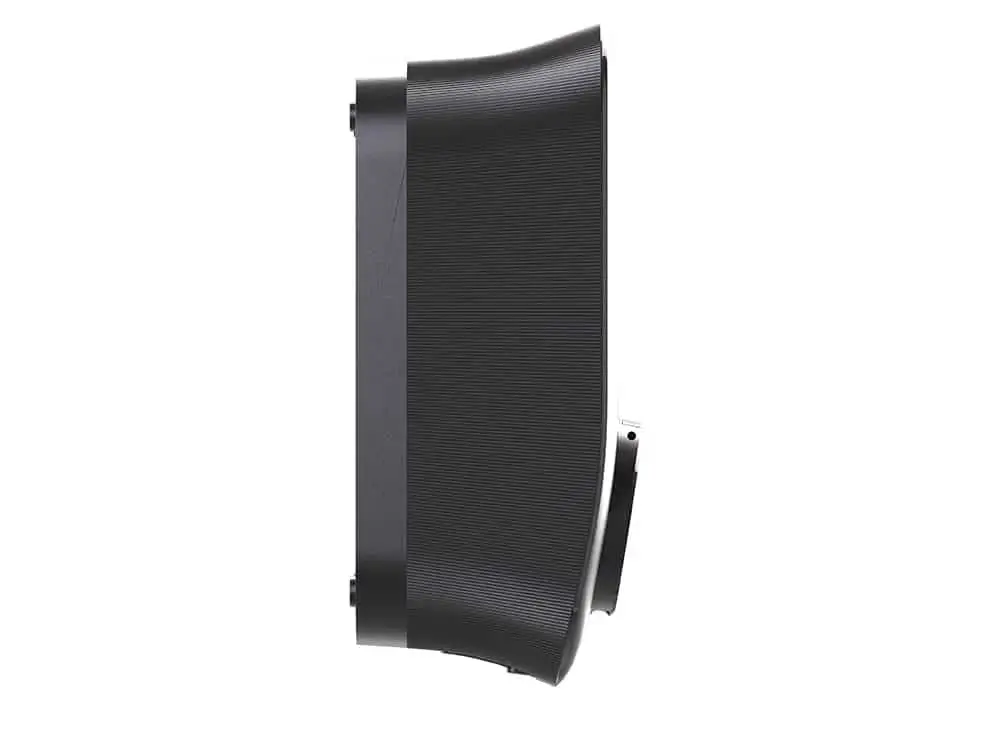

EO Genius 2 EV Charger | 7.2kW
Our newest and smartest commercial charging solution for fleets, offices, and destinations is here—meet the EO Genius 2. When used in conjunction with the EO Hub 2, you’ll gain access to additional smart-charging features and the EO Cloud online interface, which provides a comprehensive picture of your charging infrastructure.
- Reliable Charging – 7.2kW output for efficient home use.
- Smart Control – Monitor and manage charging via smartphone.
- Expert Installation – Professional setup for hassle-free operation.
- Connection type: Universal Type 2 socket and Type 2 tethered cable
- Power ratings: Single-phase up to 7.2kW
- Solar charging: Charge your vehicles with solar energy using our solar matching or net-zero technologies (optional extra, using an additional CT clamp)
- Connectivity: Wi-Fi, Cat 5 Ethernet, Bluetooth as standard, 4G cellular as optional extra
- MID meter as standard, with optional NMI meter or Eichtrecht meter
- Integrated RFID reader & EO branded RFID tags available
| Specification | EG201-DCL (Single-phase) | EG203-DCL (Three-phase) |
|---|---|---|
| Model Order Code | EG201-DCL | EG203-DCL |
| Description | EO Genius 32A Single-phase charger – locking socket | EO Genius 32A Three-phase charger – locking socket |
| Electrical Data | ||
| Rated Power | Up to 7.2 kW | Up to 22 kW |
| Charging Current | 6A to 32A (variable) | 6A to 32A (variable) |
| Rated Current | Up to 32A max | Up to 32A max |
| Nominal Supply | 230VAC 50Hz | 400VAC 50Hz |
| Supply Connections | TN: L1, N, PE (0.2–10 mm²) IT: L1, N | TN: L1, L2, L3, N, PE (0.2–10 mm²) IT: L1, L2, L3, PE |
| Over Current Connection | 40A supply | 40A supply |
| Earth Leakage Protection | 30mA Type A RCD required 6mA DC leakage detection built-in | Same as EG201-DCL |
| Standby Power Consumption | < 3W | < 3W |
| Status Indication | Full spectrum LED (red, green, blue) | Same as EG201-DCL |
| Charging Mode | Mode 3 (IEC 61851-1 compliant) | Same as EG201-DCL |
| Socket | IEC 62196 Type 2, IP54 hinged lid, locking pin | Same as EG201-DCL |
| Supply Cable Entry | Ø25mm modifiable (includes Ø10–Ø22mm stepped grommet) | Same as EG201-DCL |
| Mechanical Data | ||
| Dimensions (H × W × D) | 330 × 220 × 130 mm | Same as EG201-DCL |
| Unit Weight | < 4kg (socketed), < 7kg (tethered) | Same as EG201-DCL |

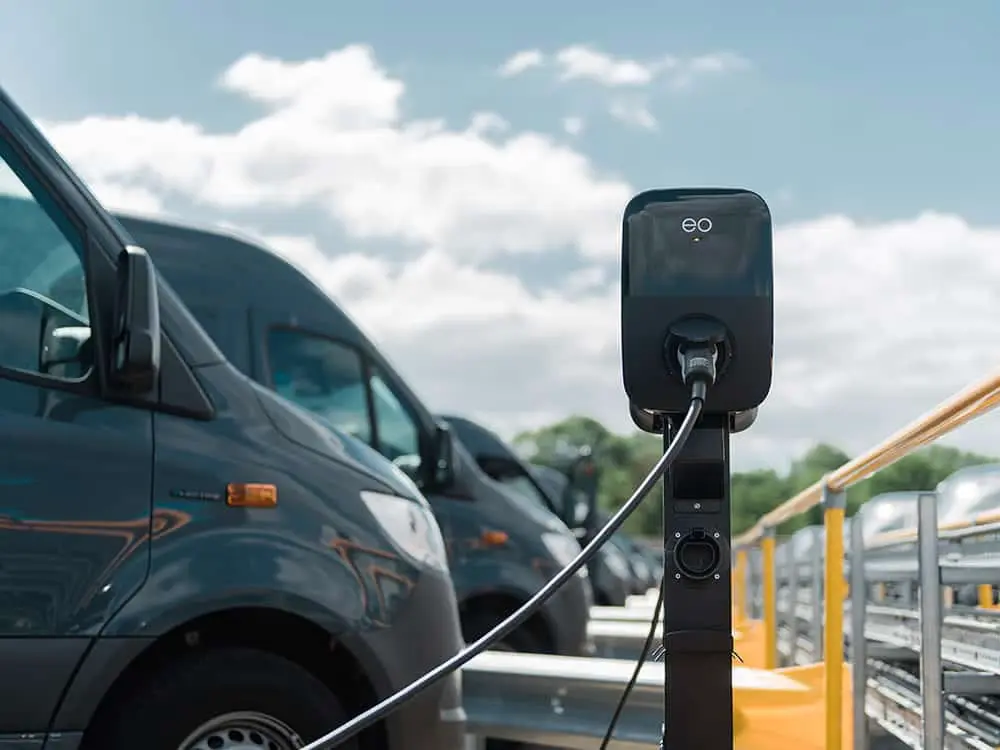

| Mounting Location | Wall or post, indoor/outdoor (post requires optional backplate) | Same as EG201-DCL |
| Ambient Temperature | -30°C to +55°C | Same as EG201-DCL |
| Internal Electronics Temperature | -25°C to +50°C | Same as EG201-DCL |
| Operating Humidity | 5% to 95% RH | Same as EG201-DCL |
| Enclosure | PC UV stabilized (UL94 V-0 fire rated) | Same as EG201-DCL |
| Protection | IP66 / IP54 | Same as EG201-DCL |
| Impact Rating | IK08 | Same as EG201-DCL |
| Standard Finish | Black (RAL9005), removable fascia | Same as EG201-DCL |
| Optional Finish | Co-branding available (subject to MOQs) | Same as EG201-DCL |
