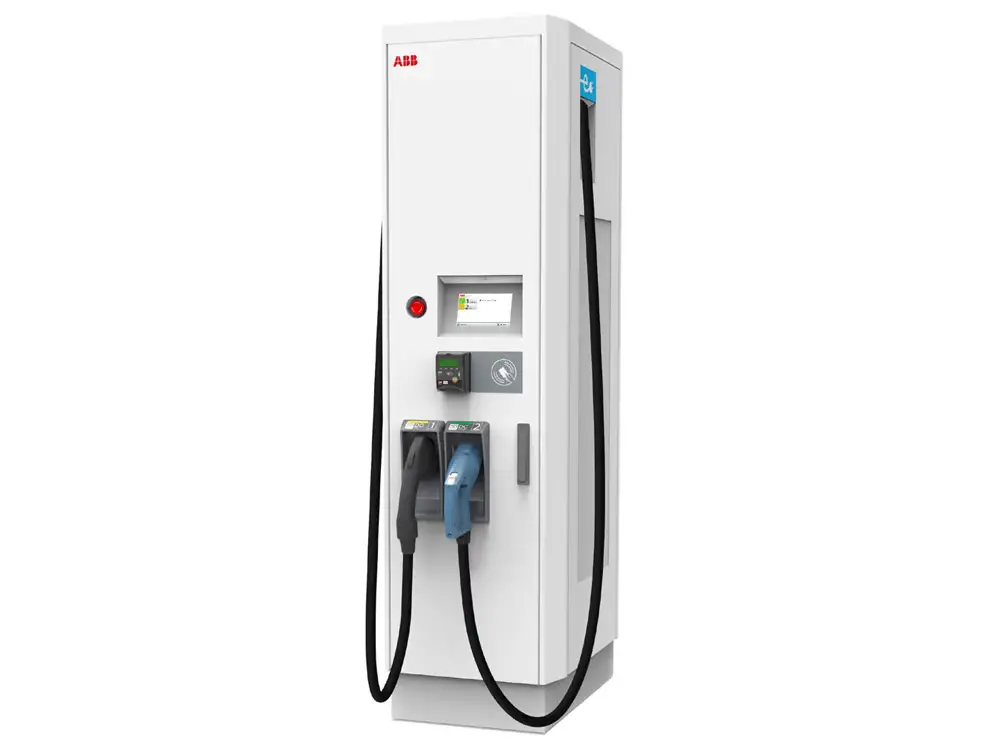

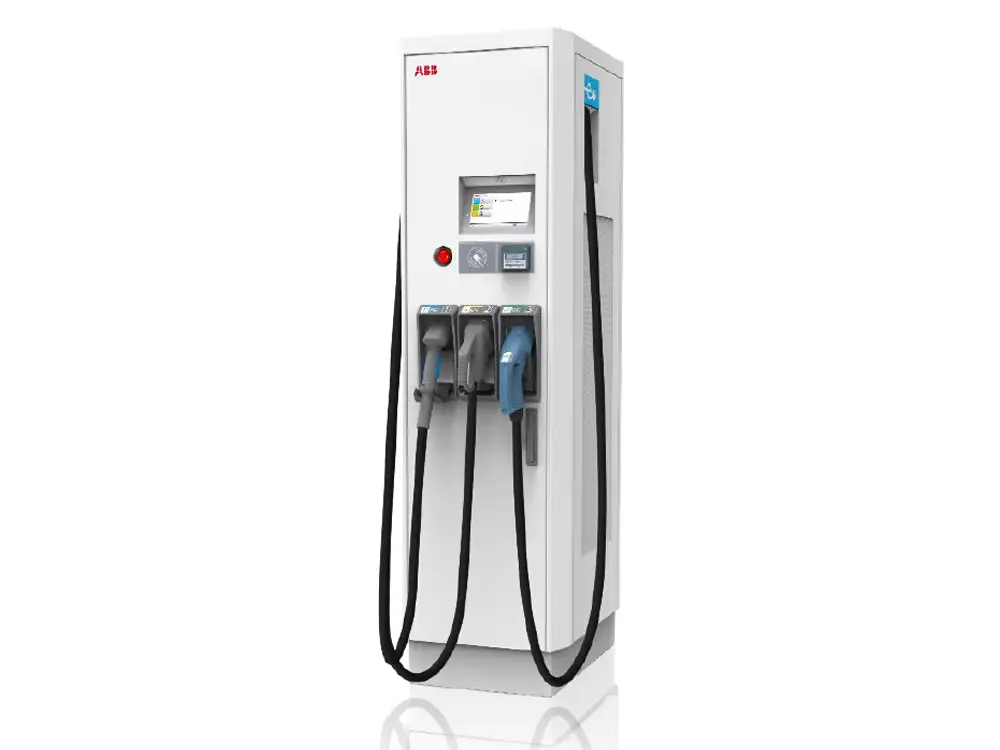

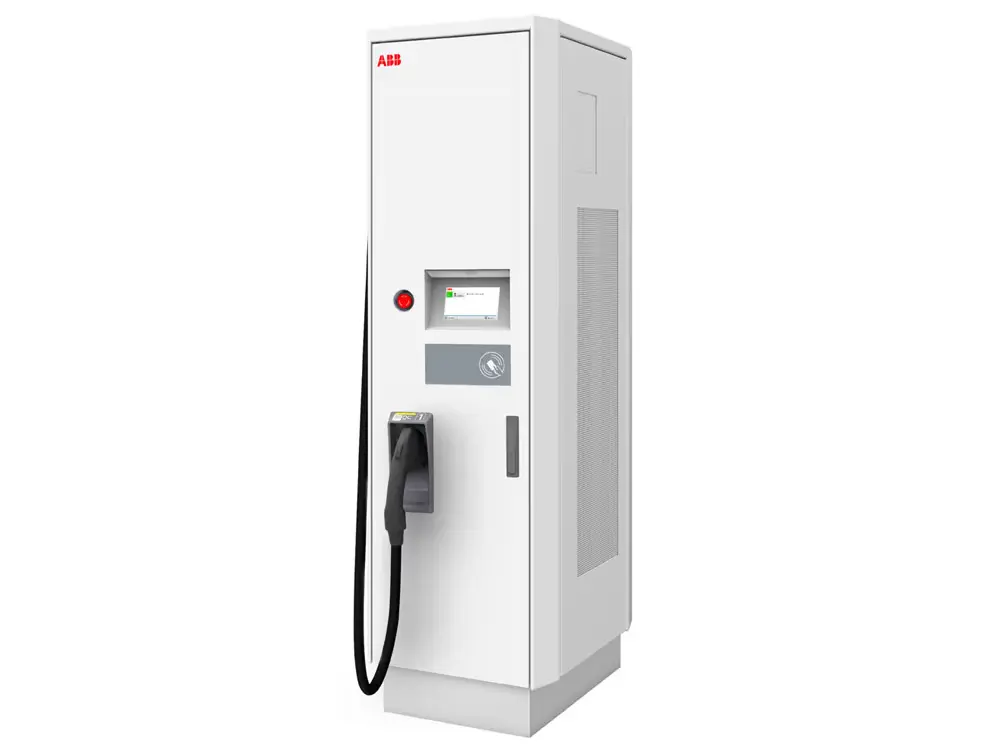

ABB Terra 54 DC Fast Charger | 50kW
The Terra 54 delivers improved usability and reliability in a single unit, building on more than a decade of DC rapid charging expertise. The Terra 54 supports high voltage charging at 920 VDC and offers continuous 50 kW charging up to. The Terra 54 can be set up to support CCS1-only or CCS plus CHAdeMO.
- Fast & Reliable – 50kW DC charging with CCS & CHAdeMO, up to 920VDC.
- Safe & Durable – Redundant power, EMC Class B certified, all-weather design.
- Smart & Easy – Remote connectivity, RFID access, and touchscreen display.
Main Features
- 50 kW DC fast charger supporting CCS and CHAdeMO
- Paralleled power module topology with automatic failover offers high uptime through redundancy
- Delivers full 50kW output power continuously and reliably over its lifetime
- High voltage charging capability up to 920 VDC with Terra 54HV configuration
- EMC Class B certified for safe use at fuel stations, retail centers, offices, and residential adjacent sites
- Always connected, enables open industry standards, including remote services, updates and upgrades
- High brightness, daylight readable touchscreen display with graphic visualization of charging progress
- RFID authorization modes
- Robust all-weather powder-coated stainless steel enclosure
- Quick and easy installation as well as serviceability
Spare parts are backwards and forwards compatible with Terra 53 product line
| Specification | Terra 94 | Terra 124 | Terra 184 |
|---|---|---|---|
| Electrical | |||
| Maximum Output Power | 90 kW | 120 kW or 60 kW x 2 | 180 kW or 90 kW x 2 |
| AC Input Voltage | 480Y / 277 VAC ±10% (60 Hz) | 480Y / 277 VAC ±10% (60 Hz) | 480Y / 277 VAC ±10% (60 Hz) |
| AC Input Connection | 3-phase: L1, L2, L3, GND | 3-phase: L1, L2, L3, GND | 3-phase: L1, L2, L3, GND |
| Nominal Input Current / Power Rating | 115 A, 96 kVA | 153 A, 128 kVA | 230 A, 192 kVA |
| Recommended Upstream Circuit Breaker | 150 A | 200 A | 300 A |
| Power Factor* | > 0.96 | > 0.96 | > 0.96 |
| Current THD* | < 5% | < 5% | < 5% |
| Short Circuit Current Rating | 65 kA | 65 kA | 65 kA |
| DC Output Voltage | CCS1: 150–920 VDC; CHAdeMO: 150–500 VDC | Same as Terra 94 | Same as Terra 94 |
| DC Output Current | CCS1: 200 A; CHAdeMO: 200 A | CCS1: 200 A; CHAdeMO: 200 A | CCS1: 200 A; CHAdeMO: 200 A |
| Optional High Current Cable | – | Optional CCS1 300 A (nom), 400 A (peak) | Optional CCS1 300 A (nom), 400 A (peak) |
| Efficiency* | 95% | 95% | 95% |
| Interface and Control | |||
| Charging Protocols | CCS1 and CHAdeMO 1.2 | CCS1 and CHAdeMO 1.2 | CCS1 and CHAdeMO 1.2 |
| User Interface | 7” high brightness color touchscreen | Same as Terra 94 | Same as Terra 94 |
| RFID System | ISO/IEC 14443A/B, ISO/IEC 15393, FeliCa™, NFC, Mifare, Calypso (Legic optional) | Same | Same |
| Network Connection | GSM/3G/4G modem; 10/100 Base-T Ethernet | Same | Same |
| Communication | OCPP 1.6 Core, Smart Charging, Autocharge | Same | Same |
| Supported Languages | English (others on request) | Same | Same |
| Environment | |||
| Operating Temperature | -35 °C to +55 °C / -31 °F to +131 °F | Same | Same |
| Recommended Storage | -10 °C to +70 °C / 14 °F to +158 °F | Same | Same |
| Protection | IP54, NEMA 3R (indoor/outdoor) | Same | Same |
| Humidity | 5% to 95%, non-condensing | Same | Same |
| Altitude | 2000 m / 6560 ft | Same | Same |
| General | |||
| Charge Cable Length | 6 m / 19.6 ft | Same | Same |
| Dimensions (H × W × D) | 1900 × 565 × 880 mm / 74.8 × 22.2 × 34.6 in | Same | Same |
| Weight | 350 kg / 775 lbs | 365 kg / 800 lbs | 395 kg / 870 lbs |
| Compliance and Safety | UL 2202, CSA No. 107.1-16; UL 2231-1, UL 2231-2, CSA C22.2 No. 107.1; NEC 625; EN 61851, EN 62196; CHAdeMO 1.2; DIN 70121; ISO 15118; IEC 61000-6-3; EMC Class B; FCC Part 15 | Same | Same |
