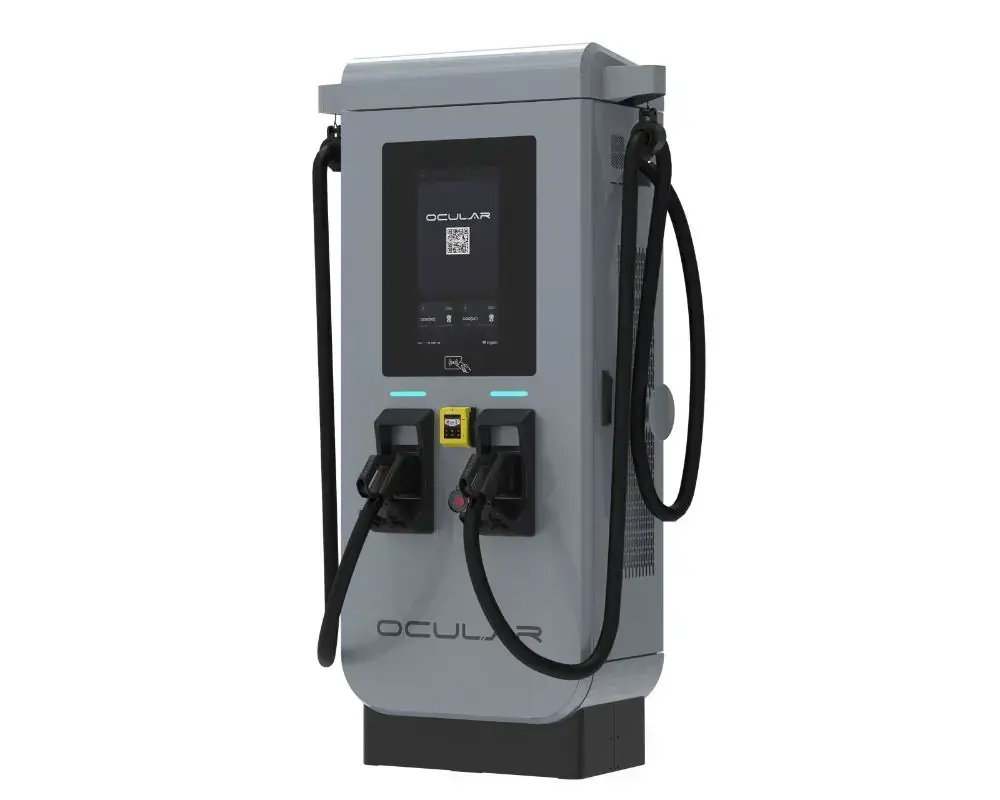

Ocular Atlas Pro DC Charger | 60kW | Dual Charger CCS2
The Ocular Atlas Pro is a top-tier fast DC charging solution, designed for maximum convenience and efficiency in carparks with its sleek 470mm profile. It is capable of supporting vehicles with high-voltage battery systems and is compatible with all major EV brands in Australia.
Main Features
- Featuring a large 21.5” display for a premium user experience and ad space to generate additional revenue, the Atlas Pro is perfect for commercial settings.
- Rated Input Voltage: 3-phase 400V AC ± 15%
- Can charge 2x EV’s at once
- Compatible with all-electric vehicles with DC Capabilities
Details

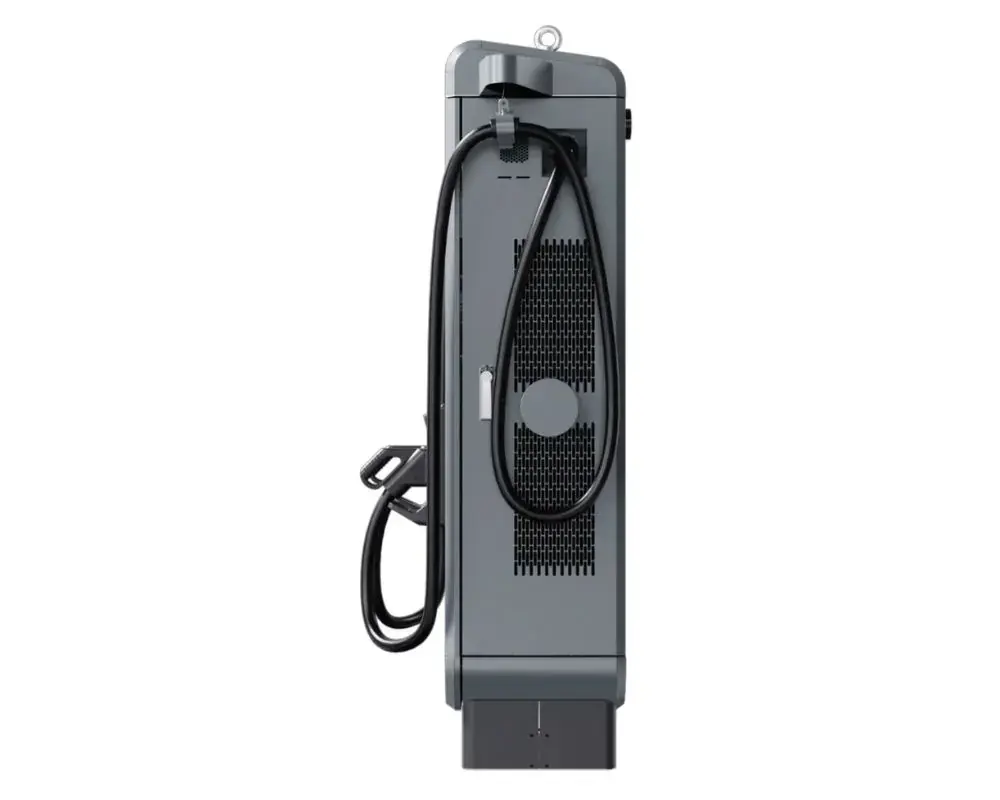

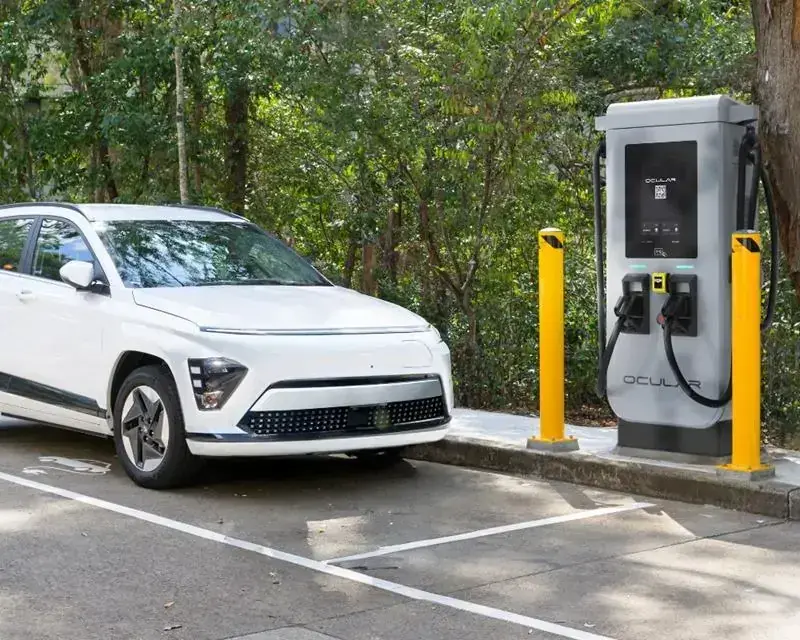

The Ocular Atlas Pro DC Charger combines fast, dependable charging with a sleek 488mm profile and a robust 21.5” touchscreen display. Designed to enhance the user experience, it also includes ad space for additional revenue generation. Ideal for carparks and commercial spaces, the Atlas Pro supports app-based billing and tap-and-go payments, making it easy to transform charging stations into profitable assets.
Equipped with dual CCS2 ports as standard and optional CHAdeMO configurations, the Atlas Pro can charge two vehicles simultaneously. With OCPP compatibility (1.6J and upgradeable to 2.0.1), advanced load management, and secure user access via mobile app or RFID, it ensures efficient and reliable operation. Fully compatible with all major EV brands in Australia, it delivers versatile charging solutions for any setting.
Credit Card Module
- This charger comes with a Nayax credit card module at an extra cost
- This unit is also operable with Exploren and Chargefox through OCPP as a standard with a subscription
Technical Specifications
Specifications:
- Connectors: CCS-2 x 2, CHAdeMO (Optional)
- DC Power Output: 60kW or 120kW (150V-1000V DC)
- 200Amp Max per Connector
- Supply Input: 3-Phase 400V ± 15%
- Supply frequency: 50-60 Hz
- IP55
- Warranty: 2 Years
- Cable Length: 7m (Retractable pulley)
- Forced Air Cooling
- RFID & Mobile App Authentication
- Credit Card Terminal as Standard
- Efficiency: >=94%
- Power Factor: >=0.99
- Display: 21.5” CTP Touchscreen with Ad Space
- Operating Temperature: -30℃ to 55℃
- Network Connection: Ethernet, 4G, Modbus (TCP/IP)
- OCPP Compatibility: OCPP1.6J, Upgradable to OCPP2.0.1
- Weight: 300kg (60kW) / 345kg (120kW)
- Dimensions: 1900(H) x 1052(W) x 470(D) mm
- Certifications: CE, IEC/EN 61851-1, IEC/EN 61851-23, IEC/EN 61851-21-2, RCM
- Electrical Protection: Overcurrent, Short Circuit, Over/Under Voltage, Ground Fault, Lightning Surge, Over Temperature
Important Installation Information:
- Installation must be performed by a licensed and qualified electrician familiar with Australian industry standards. The installer assumes full responsibility for ensuring a safe and compliant setup.
Charging Speed Reminder:
- Charging speed depends on the vehicle’s specifications. The unit delivers a maximum of 250A multiplied by the vehicle’s voltage:
- For vehicles charging at voltages above 600V: 150kW
- For vehicles charging at 400V: 100kW
