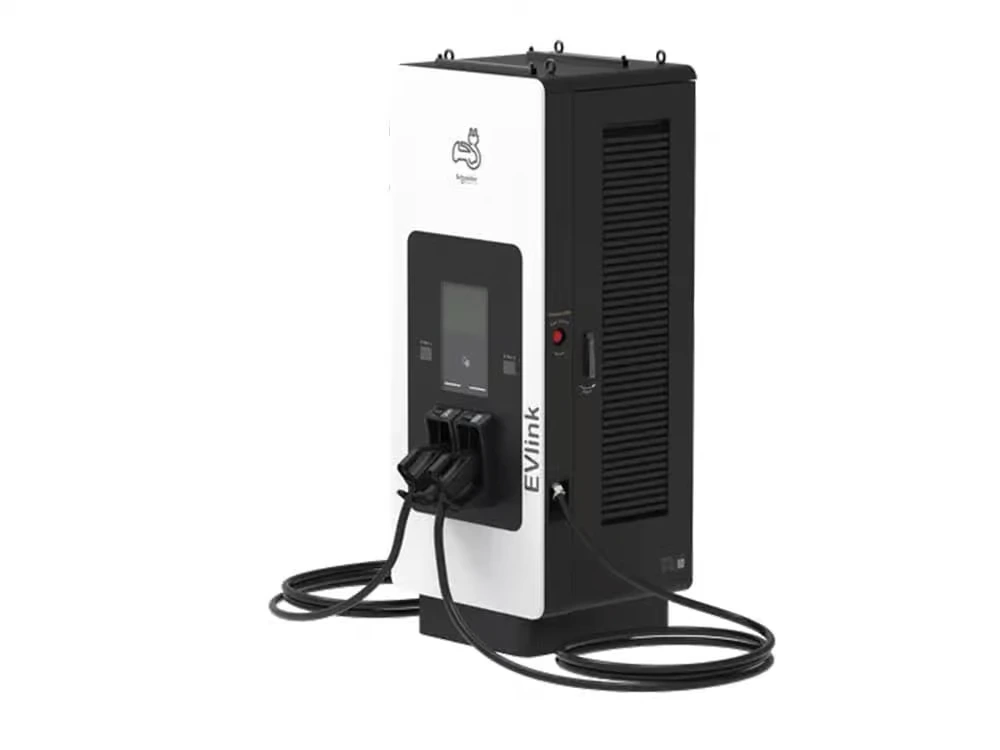

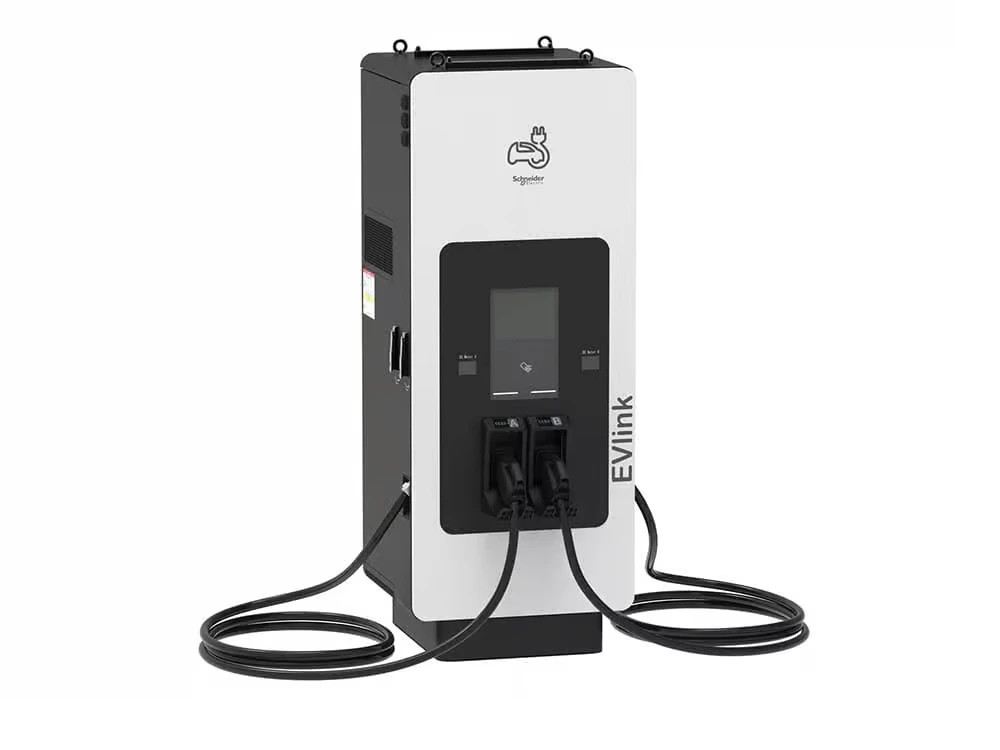

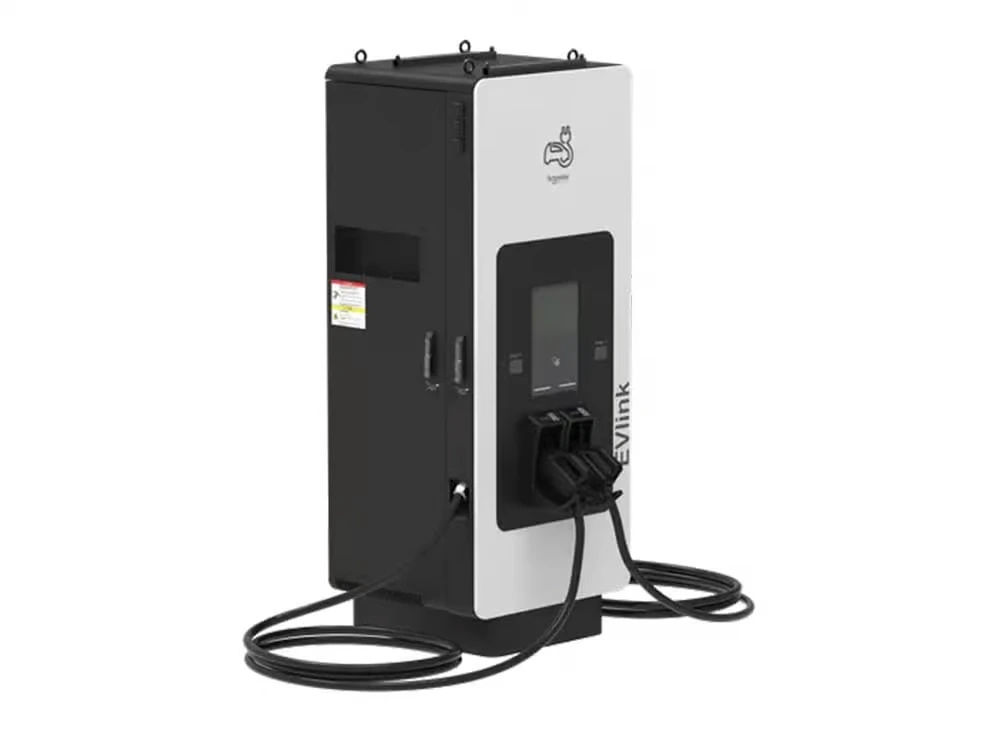

EVlink Pro DC | 120kW | Fast Charging Station | CCS2 + CCS2 connectors | 7.5m Cable without Cable Management System
The EVlink Pro DC is a floor-standing fast charging station compatible with all electric vehicles, designed to meet IEC61851-1 ed.3 and IEC61851-23 standards.
It offers an IP55 protection rating, IK10 durability, and IK08 protection for the touchscreen. The station operates in temperatures ranging from -30°C to 50°C, with performance derating beyond 50°C. It comes equipped with a 7.5m attached cable featuring dual CCS2 vehicle connectors, without a cable management system.
The nominal output power is 120kW, with the flexibility to scale up to 180kW.
Safe & Reliable – Built to meet stringent standards, factory-tested for exceptional reliability.
Easy – Simple to install, operate, and use.
Flexible – Scalable DC charging power from 120kW to 180kW, featuring two vehicle connectors with dynamic energy distribution.
Peace of Mind – Backed by a global customer care center offering premium support.
Sustainable – Certified with the Green Premium eco-label.
Main
| Range | EVlink |
| Product Name | EVlink Pro DC |
| Product or Component Type | Fast charging station |
| Type of installation | Indoor/outdoor |
| Poles Description | 3P + N + E |
Complementary
| Range compatibility |
EVlink Field Services EVlink EVlink Load Management System |
| Device application | Electrical Vehicle charger |
| Mounting location | Floor stand |
| Earthing system |
TN-S TN-C-S TT Compatible IT with additional isolation transformer on the power supply |
| [Us] rated supply voltage | 380...415 V AC at 50...60 Hz, 3 phases + neutral |
| Input current | 193…214 A |
| Nominal output power | SAE CCS Combo 2: 120 kW at 1.5…300 A, 150...1000 V, DC |
| Output type | 2 charging cable of 7.5 m |
| Number of outputs | 2 |
| Connector type | SAE CCS Combo 2 |
| Provided equipment | 1 meter display per output |
| Accuracy class of energy meter | Class 1 |
| Absolute accuracy error of energy meter | 1 % of full scale |
| Protection type |
Short-circuit protection on output Overload protection Ground fault protection Residual current breaker with overcurrent protection (RCBO) Temperature rise protection |
| Access control system |
Badge RFID conforming to ISO/IEC 14443 A and B Badge NFC |
| Display type | LCD touch screen : 10 inch |
| Main user language (constantly evolving) | Danish, Dutch, English, French, German, Norwegian, Spanish |
| Control button type | Charge interruption button |
| Material | Enclosure: stainless steel 304 |
| Colour |
Front face: signal white (RAL 9003) Body: black (Pantone black C) |
| Efficiency | 94.5 % |
| Power factor | 0.99 |
| Ambient air temperature for operation | -30…55 °C (with derating above 50 °C) |

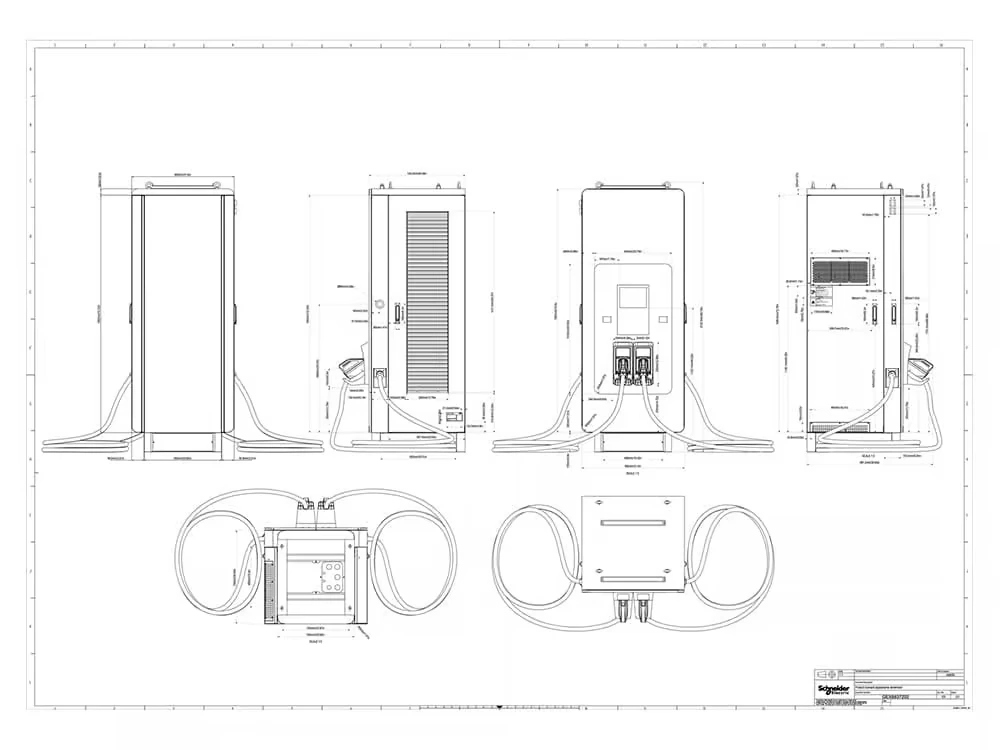

| Height | 2103 mm |
| Width | 833 mm |
| Depth | 963 mm |
| Net weight |
451 kg (without power module) 511 kg (with power module) |
| Services |
Commercial service plan Commissioning service Warranty extension up to 5 years Repair service |
| Ethernet service | Web browser |
| Communication port protocol | OCPP 1.6 |
| Communication network type |
4G WLAN TCP/IP Wi-Fi |
Environment
| Electromagnetic compatibility |
Immunity for industrial environments Emission standard for industrial environments |
| IP degree of protection | IP55 |
| IK degree of protection |
IK10 Screen: IK08 |
| Ambient air temperature for storage | -40…70 °C |
| Operating altitude | 0...2000 m |
| Relative humidity | 5…95 %, without condensation |
| Standards |
IEC 61851-1:ed. 3 IEC 61851-23:ed. 1 IEC 62196-1 IEC 62196-3 EN/IEC 61000-6-2:2005 EN/IEC 61000-6-4:class A ISO 15118 DIN 70121 |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 243.8 cm |
| Package 1 Width | 117.4 cm |
| Package 1 Length | 126 cm |
| Package 1 Weight | 634 kg |
