EVlink Pro AC - 7.4kW, 32A, 1P+N, T2 attached cable, RDC-DD 6mA, MNx aux.

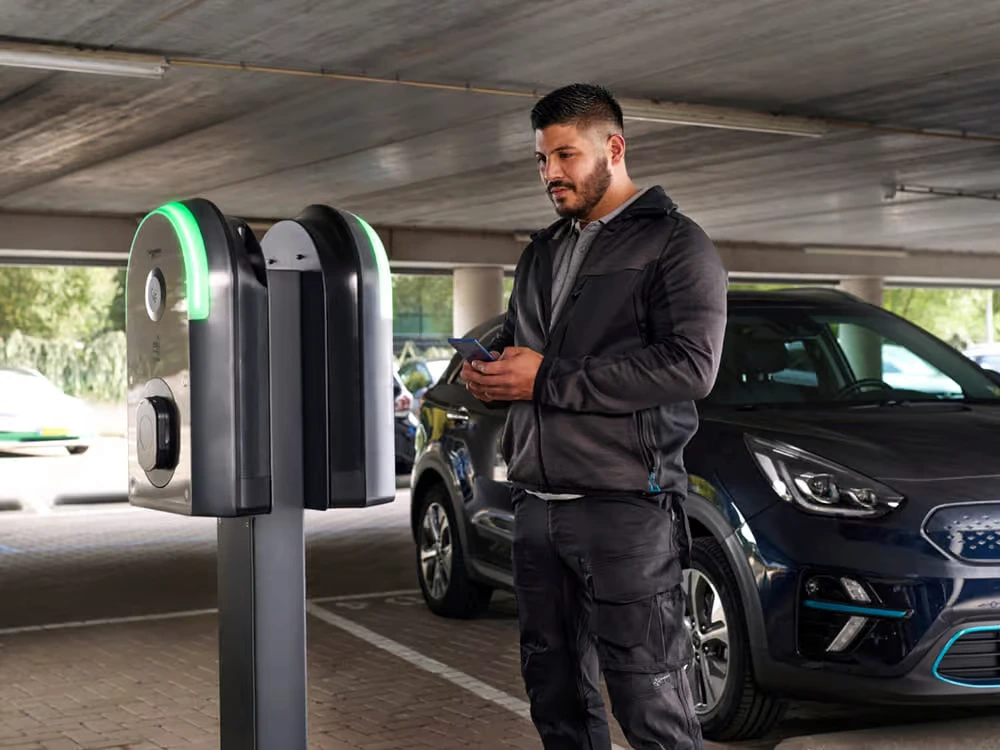

The EVlink Pro AC is a versatile charging station for electric vehicles that complies with the IEC61851-1 standard. This unit is designed for wall mounting but can also be installed as a floor-standing station, either on a pedestal or within an enclosure kit, both of which must be purchased separately. It is suitable for both indoor and outdoor use, offering an IP55 protection rating and an IK10 impact resistance. The station operates in temperatures ranging from -30°C to 45°C, with a storage temperature range of -40°C to 80°C.

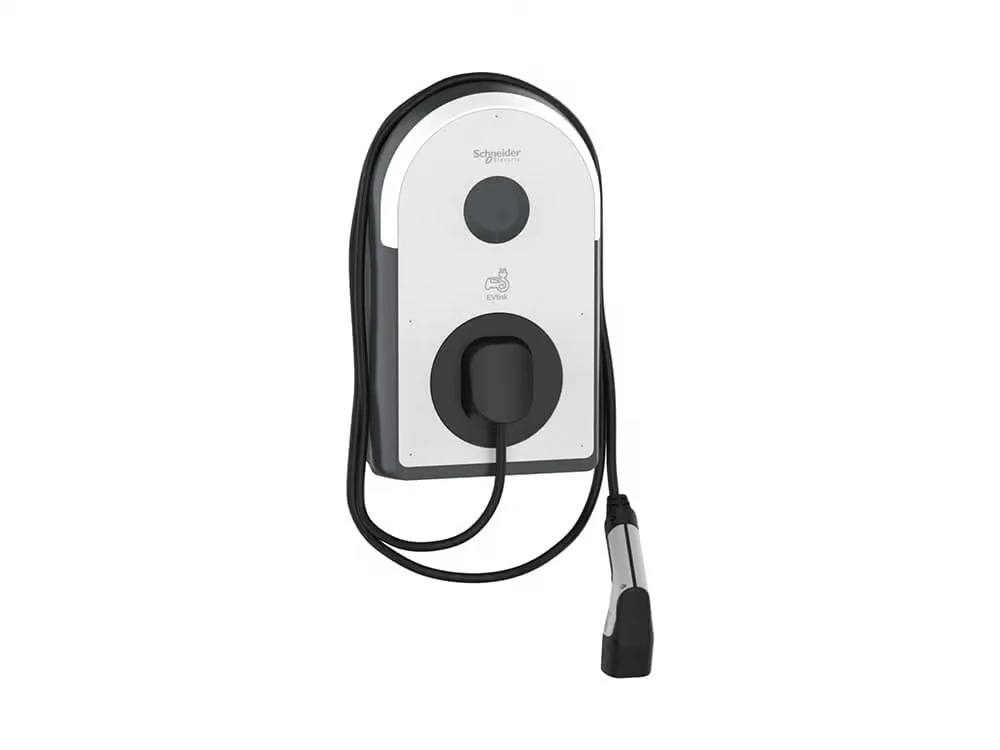

The EVlink Pro AC features a 5-meter attached cable terminating in a T2 socket-outlet with a shutter (T2S), positioned at the top center of the unit. The T2 connector includes silver-plated contacts to prevent overheating. The station delivers a nominal output power of 7.4kW in single-phase (1P+N) mode. It supports a rated charging current of 32A at a voltage range of 220V to 240VAC, operating at a frequency of 50Hz to 60Hz.
Complementary
| Range compatibility |
EVlink EcoStruxure EV Charging Expert EVlink EVlink Pro AC Metal EcoStruxure EcoStruxure EV Advisor |
| Type of installation |
Indoor Outdoor |
| Provided equipment |
1 residual direct current detection device (RDC-DD) integrated 1 MNx auxiliary contact integrated 1 energy meter integrated |
| Accuracy class of energy meter | Class 1 |
| Protection device type | Residual direct current detection device (RDC-DD) - 6 mA |
| Poles description | 1P + N for power circuit |
| Mounting mode |
Wall-mounted Wall-mounted (kit enclosure) Floor-standing (pedestal) Floor-standing (kit enclosure) |
| Mounting support |
Pedestal, to be ordered separately Kit enclosure, to be ordered separately |
| Cable entry |
Bottom entry Top entry Rear entry |
| [Us] rated supply voltage | 220...240 V AC 50/60 Hz |
| Nominal output power | 7.4 kW 222...240 V |
| Socket number | 1 |
| Output type | Front side T2 attached cable / silver plated contacts 5 m |
| Access control system |
Badge RFID conforming to ISO/IEC 14443 A and B Badge RFID conforming to ISO/IEC 15693 Badge NFC Free access |
| RFID compatible technology |
MIFARE Classic MIFARE Ultralight MIFARE Plus |
| NFC frequency | 13.56 MHz |
| NFC tag type |
Type 1 Type 2 Type 4 Type 5 |
| Earthing system |
TT TN-S TN-C-S IT (single phase network only allowed, 400V 3 phases network forbidden) |
| Number of inputs | 3 |
| Input type |
Binary for power limitation closing contact Binary for delayed charging closing contact Binary for vehicle detection closing contact |
| Control type | Can be controlled by remote |
| Local signalling |
1 green LED light strip, function: available 1 blue LED light strip, function: charging 1 red LED light strip, function: fault indication |
| Standards |
EN/IEC 61851-1:ed. 3 EN/IEC 62196-1:ed. 2 EN/IEC 62196-2:ed. 1 EN 61000-6-2:2019 EN 61000-6-3:2007 EN 61000-6-3:2011/A1 IEC 60884-1 NF C 61314 ISO 15118 |
| Product certifications |
EV Ready CE |
| Operating altitude | 2000 m without derating |

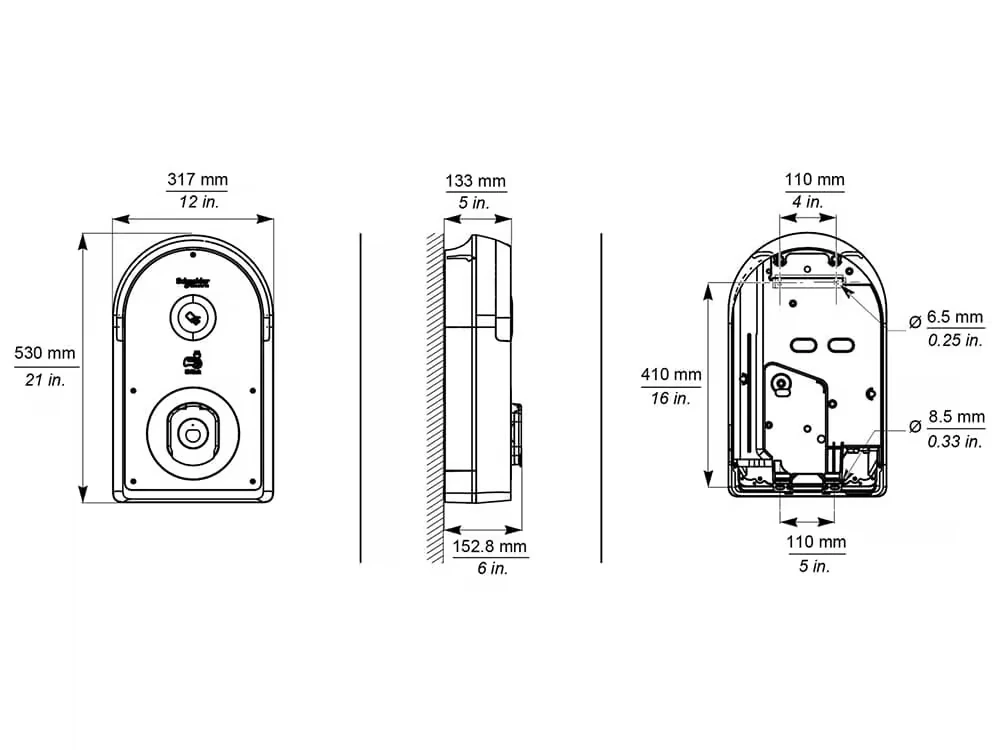

| Height | 529 mm |
| Width | 317 mm |
| Depth | 183 mm |
| Net weight | 10 kg |
| Colour |
Front face: white (RAL 9003) Housing: dark grey (RAL 7016) Back part: black (RAL 9005) |
Main
| Range | EVlink |
| Product Name | EVlink Pro AC |
| Product or Component Type | Charging station |
| Device Short Name | EVB3 |
| Communication network type |
Ethernet Bluetooth 3G/4G modem optional Modbus TCP |
| Connector type | 2 RJ45 for Ethernet LAN connection |
| Communication port protocol | OCPP 1.6 |
| Communication service | JSON smart charging for OCPP 1.6 |
| Operating mode |
Clustered architecture Standalone |
| Function available |
Diagnosis capabilities Charge detail records Load management |
Environment
| IP Degree Of Protection | IP55 |
| IK Degree Of Protection | IK10 |
| Ambient Air Temperature For Operation | -30…45 °C |
| Ambient Air Temperature For Storage | -40…80 °C |
| Relative Humidity | 5…95 % |
Packing Units
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 9.790 kg |
| Package 1 Height | 29.000 cm |
| Package 1 Width | 35.500 cm |
| Package 1 Length | 58.000 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Weight | 46.000 kg |
| Package 2 Height | 72.000 cm |
| Package 2 Width | 60.000 cm |
| Package 2 Length | 80.000 cm |
