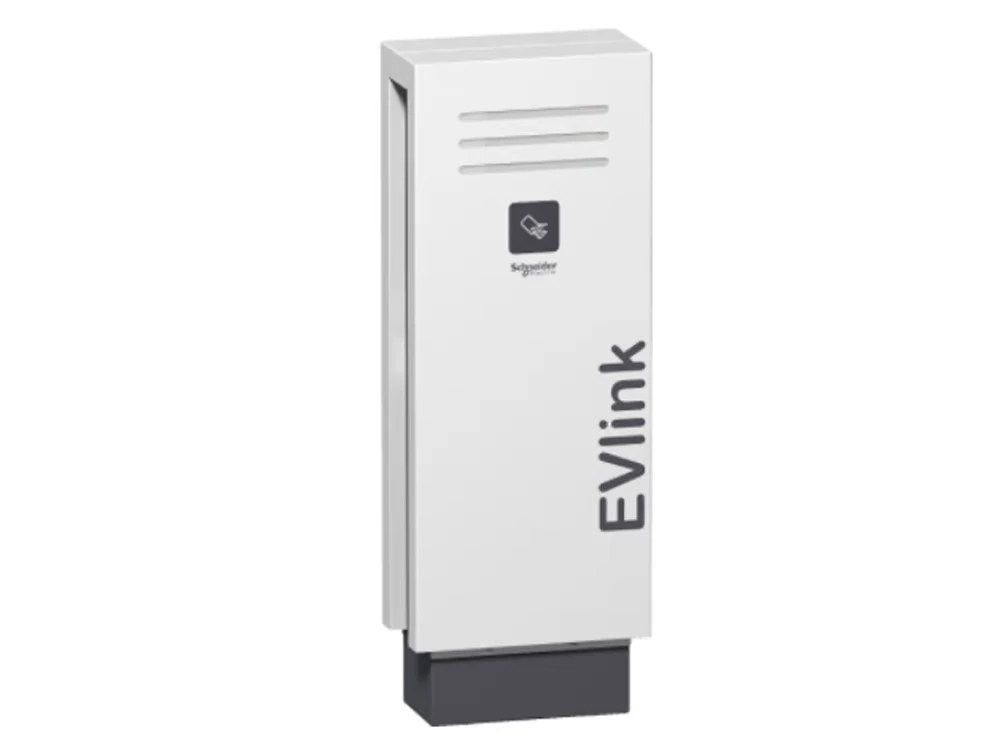

EVlink Parking Floor Standing 7KW 2xT2 With Shutter EV Charging Station
EVlink Parking charging systems are available in a variety of parking locations, including workplaces, hotels, supermarkets, fleets, municipalities, and more.
The EVlink Parking Floor Standing Charging Station is designed for versatility and efficiency, offering a 7kW output with dual T2 sockets for charging two electric vehicles simultaneously. Featuring safety shutters for added protection, this charging station is perfect for commercial parking areas or public charging points. Its user-friendly design ensures a seamless charging experience. With our expert Schneider EV charger installation service, you can achieve a quick and professional setup that maximizes convenience and accessibility. Choose the EVlink Parking Station for a reliable and efficient charging solution that meets the demands of today’s electric vehicle users.
Ensure reliable and efficient charging with EV Charger Installation services by Calibre Connect. Contact us to set up your EV charger with precision and care.
Main
Range | EVlink |
Product Name | EVlink parking |
Product or Component Type | Charging station |
Device Short Name | EVF2 |
Poles Description |
1P + N for power circuit 1P + N for control circuit |
Mounting Mode | Floor-standing |
Offer Type | Standard |
Rated Supply Voltage |
230 V AC 50/60 Hz control circuit 220...240 V AC 50/60 Hz control circuit |
Earthing System |
TT IT TN |
Socket-outlet Number | 2 |
Socket-outlet Type |
Right: T2 with shutter / silver plated contacts Left: T2 with shutter / silver plated contacts |
Maximum Supply Current | 32 A for T2 with shutter |
Max Power | 7 kW for T2 with shutter |
Complementary
Control Type |
2 red push-button, function: stop 2 green illuminated push-button, function: start/unlock flap |
Local Signalling |
On charge: 2 LED (green) (flashing) on side Available: 2 LED (green) on front Reserved: 2 LED (orange) on front Not operational: 2 LED (red) on front |
Communication Port Protocol | OCPP 1.6 |
Configuration /Architecture |
Clustured architecture Standalone |
Operation And Maintenance |
Postponed charge Load management User privilege configuration Diagnosis capabilities Charge detail records Circuit breaker status |
Web Server | Embedded |
Ethernet Service | Configuration via web server |
Standards |
IEC 61851-22 IEC 61851-1 |
Product Certifications |
CE CB ZE Ready EV Ready |
Height | 1146 mm |
Width | 413 mm |
Depth | 220 mm |
Net Weight | 50 kg |
Colour |
Front: white (RAL 9003) Side: grey (RAL 7016) |
Environment
IP Degree Of Protection |
IP54 off load conforming to IEC 61851-1 IP54 on load conforming to IEC 61851-1 |
IK Degree Of Protection |
IK10 charging station conforming to IEC 61851-22 IK10 socket-outlet conforming to IEC 61851-22 |
Ambient Air Temperature For Operation | -30…50 °C conforming to IEC 61851-22 |
Ambient Air Temperature For Storage | -40…80 °C |
Operating Altitude | 0...2000 m conforming to IEC 61851-22 |
Relative Humidity | 0…95 % |
Packing Units
Unit Type of Package 1 | PCE |
Number of Units in Package 1 | 1 |
Package 1 Weight | 58 kg |
Package 1 Height | 38 cm |
Package 1 Width | 45 cm |
Package 1 Length | 128 cm |
Offer Sustainability
Sustainable Offer Status | Green Premium product |
REACh Regulation | REACh Declaration |
REACh free of SVHC | Yes |
EU RoHS Directive |
Compliant EU RoHS Declaration |
Mercury Free | Yes |
RoHS Exemption Information | Yes |
China RoHS Regulation |
China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
Environmental Disclosure | Product Environmental Profile |
Circularity Profile | End of Life Information |
